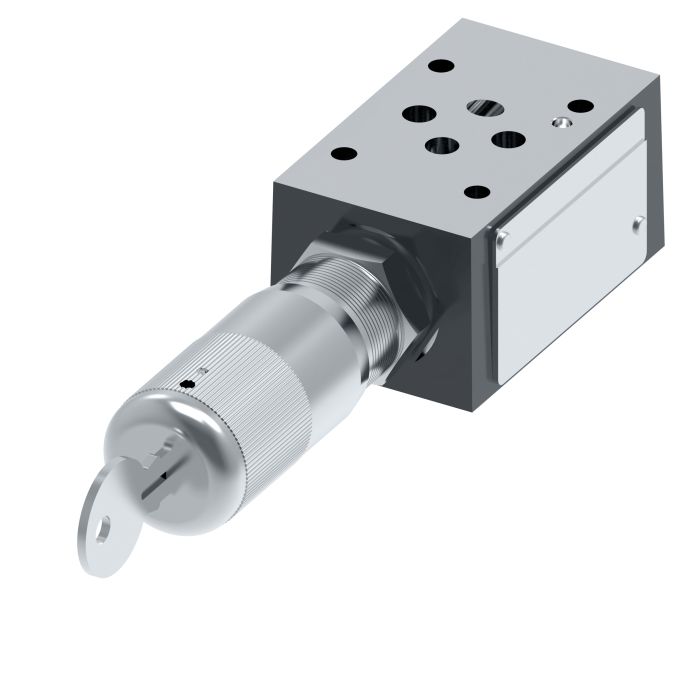

main product photo

VICKERS DGMC 3 PT GK S 41

Ask A Question

Description & Features

This Vickers DGMC 3 PT GK S 41 SystemStak valve is designed for applications including die casting and foundry, machine tool, marine/offshore, press, primary metal, paper, test equipment and simulation, and turbine control systems that use wind, steam, or water.

Features include reduced installation costs, elimination of external leakage, and boosted resistance to contamination. The valve's seal is constructed of Buna-N and offers a flow rate of 60 liters per minute.

SKU: 02-323529

Supplier Part Number (MPN): 02-323529

Specifications

Actuator Type
Pressure Operated
Adjustment Type
Micrometer with Keylock
Body Material
Iron
Connection Type
SAE
Design
41 Series
Dimensions
8.5 in L x 1.87 in W x 1.57 in H
Discharge 1
Discharge into T
Domestic/Import
Domestic
End Type
SAE
First Function
Pressure Limited in P
Gauge Port Thread
SAE 4 (7/16-20 UNF-2B)
Media
Petroleum Oil
Nominal Size
#03
Number of Stages
1
Performance
Standard
Seal Material
FKM
Series
DGMC Series
Valve Mount Type
Subplate/Manifold

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Shawn F on Sep 14, 2025, 9:34 PM
what all industries is this valve built for? got a press operation and trying to figure out if it'll work for us
Answer by: Customer Support on Sep 16, 2025, 7:39 AM
Press applications are right in the wheelhouse for this one. The DGMC-3 PT GK S 41 covers a pretty wide range of industries including press, machine tool, die casting and foundry, primary metal, paper, marine and offshore, test equipment and simulation, and turbine control systems running on wind, steam, or water. So yes, a press operation fits.
