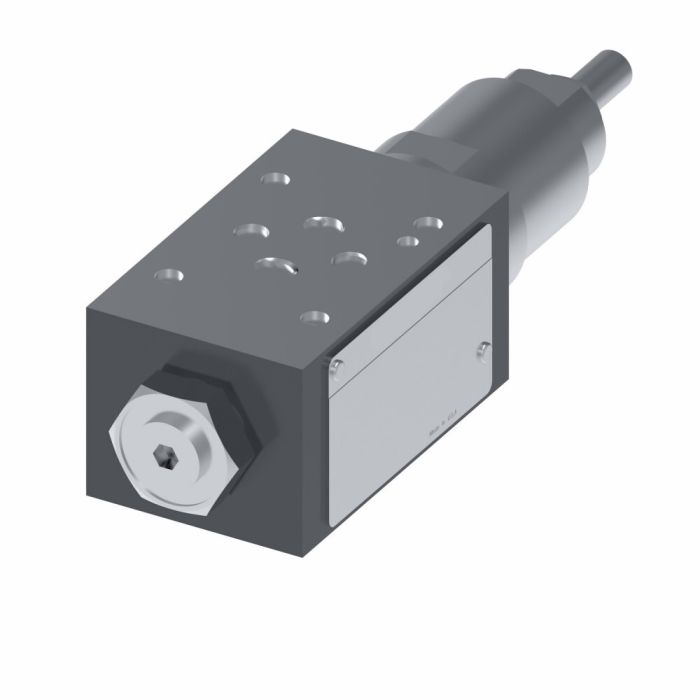

VICKERS DGMX1 3 PA AW S 40

Description & Features

Designed for machine tool and general industrial hydraulic circuits, the Vickers DGMX1 3 PA AW S 40 is a SystemStak directional control valve built to reduce installation costs by eliminating the need for external interconnecting lines. Buna-N seals provide reliable sealing across a range of hydraulic fluids, and the valve's design resists contamination ingress, a key consideration in precision manufacturing environments.

Rated for flow up to 60 litres per minute and measuring 2.82 inches in width, this valve integrates into stacked valve assemblies without external leakage points, simplifying circuit layout and ongoing maintenance. It falls within the Vickers directional control valve family, now supported under the Danfoss/Eaton product line.

SKU: 02-323847

Supplier Part Number (MPN): 02-323847

Specifications

Actuator Type Pressure Operated	Adjustment Location Adjuster - B Port End of Valve	Adjustment Type Screw and Locknut	Body Material Iron	Connection Type Female UNF	Design Series 40 Series	Dimensions 8.19 in L x 2.82 in W x 2.36 in H	Domestic/Import Domestic	End Type Female UNF	Function Ports Reducing Line P, Pilot Line A	Gauge Port Thread SAE 4 (7/16-20 UNF-2B)	Language English	Media Petroleum Oil	Nominal Size #03	Number of Ports/Ways 3-Port	Number of Stages 1	Performance Standard	Seal Material FKM	Series DGMX1-3 Series	Valve Mount Type Subplate/Manifold

Product Questions & Answers (2)

Question by: Lance E on Nov 3, 2025, 6:02 AM

Flow rate on this one is listed at 60 litres per minute, that enough for most machine tool setups, or is it gonna be tight on bigger circuits?

Answer by: Customer Support on Nov 4, 2025, 9:49 PM

For most standard machine tool hydraulic circuits, 60 litres per minute is plenty of capacity. Where you might start brushing up against that ceiling is in larger multi-actuator systems running high cycle rates simultaneously. Single-axis or moderate-duty tooling applications generally run well within that range without any flow restriction concerns.

Question by: Hubert R on Jun 25, 2025, 10:45 AM

Reckon this'll fit in my existing SystemStak setup without causing leaks?

Answer by: Customer Support on Jun 27, 2025, 6:56 AM

This directional control valve is designed to integrate into stacked valve assemblies without external leakage points, simplifying circuit layout.
