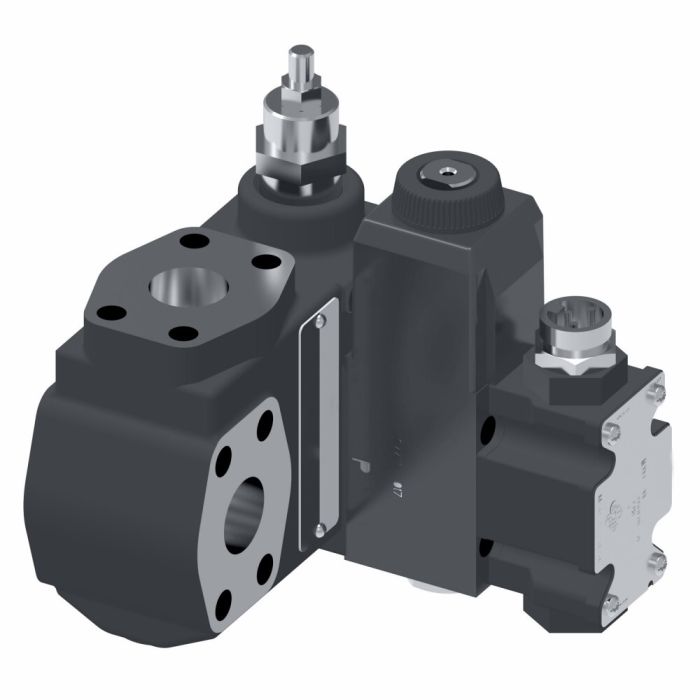

Vickers CPF2S 12 B W 3S M

Description & Features

The Vickers CPF2S 12 B W 3S M pressure control valve is designed for applications requiring an adjustable pressure relief or regulating valve to limit the pressure in a hydraulic circuit to a desired maximum.

Features include a plug-and-play design and moisture resistance for reliable performance. This Vickers valve has a flow rate of 800 liters per minute and utilizes Buna-N seals. It measures 6.5 inches in width.

SKU: 02-324459

Supplier Part Number (MPN): 02-324459

Specifications

Actuator Type
Solenoid
Adjustment Type
Screw with Locknut
Body Material
Iron
Connection Type
SAE
Design
20 Series
Dimensions
7.55 in L x 6.5 in W x 7.09 in H
Domestic/Import
Domestic
Drain
Internal
Electrical Connection
5-Pin Connector
End Type
SAE
Gauge Port Thread
1/4 in BSP
Hi-Vent Spring
Without Hi-Vent Spring
Indicator Light
With Indicator Light
Manual Override
Plain
Media
Petroleum Oil
Number of Stages
2
Performance
Standard
Seal Material
Buna-N
Series
CPF2S-12 Series
Valve Mount Type
Flange-Mounted
Voltage Rating
110 VAC at 50 Hz, 120 VAC at 60 Hz

Product Questions & Answers (2)

Sign In Hover me Please sign in to submit a question
Question by: Dwayne H on Dec 28, 2025, 1:06 PM
Flow rate on this one shows 800 liters per minute, that's a pretty serious number. What kind of applications is this valve actually built for?
Answer by: Customer Support on Dec 29, 2025, 4:56 PM
Pressure control at that flow capacity puts this squarely in industrial hydraulic systems where you need a hard ceiling on circuit pressure. The valve lets you dial in a maximum pressure limit and holds it there, whether you're protecting a pump, a cylinder, or the whole circuit from overpressure events. It can serve as a relief valve or a regulating valve depending on how the system is configured, so it covers more than one role without swapping hardware.
Question by: Howard W on Nov 13, 2025, 9:13 PM
Will this valve work with standard hydraulic fittings, or do I need something special?
Answer by: Customer Support on Nov 15, 2025, 9:01 AM
This Vickers pressure control valve is designed with a plug-and-play design, so it should work with most standard hydraulic setups.
