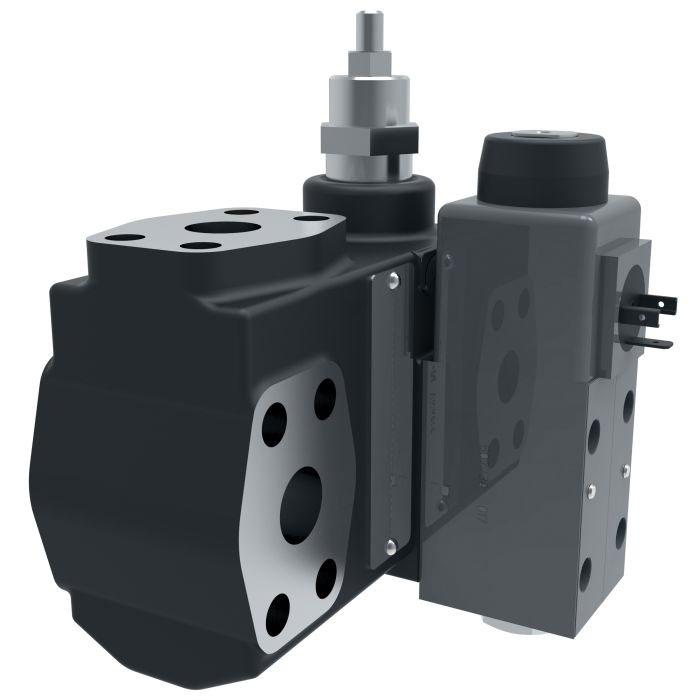

Vickers CPF2V 12 G W 3S M U

Ask A Question

Description & Features

The Vickers CPF2V 12 G W 3S M U pressure control valve is designed for applications requiring adjustable pressure relief or regulation. It is ideally suited to limit pressure in a hydraulic circuit to a desired maximum.

This Vickers pressure valve features a plug-and-play design, high-performance features, and moisture resistance. It has a flow rate of 800 liters per minute and a width of 6.5 inches. It utilizes Buna-N seals and requires 30 watts of power.

SKU: 02-325371

Supplier Part Number (MPN): 02-325371

Specifications

Actuator Type
Solenoid
Adjustment Type
Screw with Locknut
Body Material
Iron
Connection Type
SAE
Design
20 Series
Dimensions
7.55 in L x 6.5 in W x 7.09 in H
Domestic/Import
Domestic
Drain
Internal
End Type
SAE
Gauge Port Thread
1/4 in BSP
Hi-Vent Spring
Without Hi-Vent Spring
Indicator Light
Without Indicator Light
Manual Override
Plain
Media
Petroleum Oil
Number of Stages
2
Performance
Standard
Seal Material
Buna-N
Series
CPF2V-12 Series
Valve Mount Type
Flange-Mounted
Voltage Rating
110 VAC at 50 Hz, 120 VAC at 60 Hz

Product Questions & Answers (2)

Sign In Hover me Please sign in to submit a question
Question by: Lynn M on Oct 25, 2025, 12:46 PM
flow rate on this valve is listed at 800 liters per minute, is that enough for most industrial hydraulic circuits or is that on the lower end?
Answer by: Customer Support on Oct 26, 2025, 3:58 PM
800 liters per minute is a solid flow capacity for a wide range of industrial hydraulic applications. Most standard circuits won't push anywhere close to that ceiling, so for typical pressure relief or regulation setups, you've got plenty of headroom. It's really built for situations where you need to cap the maximum pressure in a circuit reliably, and at that flow rating, it handles high-demand systems without choking flow.
Question by: Kurt P on Dec 31, 2025, 11:35 AM
Will this work to keep the pressure down on my hydraulic system?
Answer by: Customer Support on Jan 2, 2026, 6:02 AM
Designed for applications needing adjustable pressure relief, this Vickers valve can limit pressure in a hydraulic circuit to the max you want.
