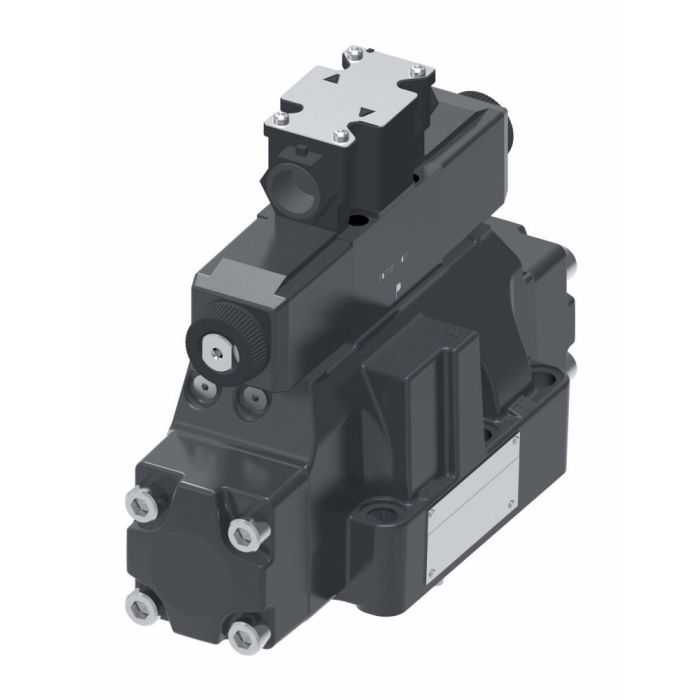

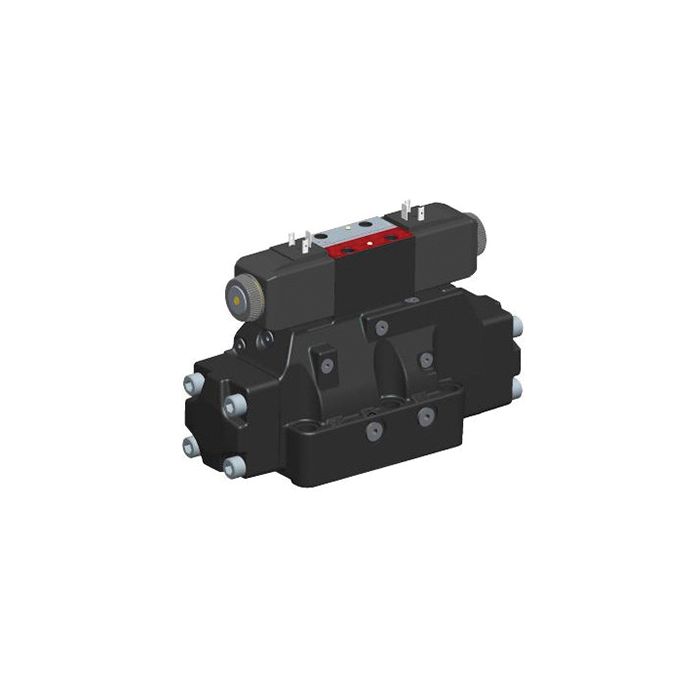

main product photo

VICKERS DG5V8H4CETVMFWB10

Ask A Question

Description & Features

Designed for high-flow industrial hydraulic circuits, the Vickers DG5V8H4CETVMFWB10 is a two-stage directional control valve capable of handling flow rates up to 700 litres per minute. It supports three- or four-way directional control and mounts on industry-standard surfaces, making it straightforward to integrate into existing system architectures.

Buna-N seals provide reliable fluid compatibility across a wide range of hydraulic media. The valve is suited to demanding applications including die casting and foundry equipment, machine tools, presses, primary metal and paper processing, marine and offshore installations, test and simulation equipment, and turbine control systems covering wind, steam, and water turbines. The broad application range reflects the flexibility built into the Vickers DG5V-8 series design.

SKU: 02-330410

Supplier Part Number (MPN): 02-330410

Specifications

Brand
Vickers by Danfoss
Actuator Type
Solenoid, Pilot Operated
Design
10 Series
Dimensions
10.45 in L x 4.67 in W x 7.94 in H
Domestic/Import
Domestic
Electrical Connection
1/2 in NPT Housing Flying Leads
Ext Pilot Pressure
External
Gauge Port Thread
7/16-20 UNF, SAE Thread
Indicator Light
Without Indicator Light
Int Pilot Drain
Internal
Manual Override
Plain
Media
Petroleum Oil
Number of Stages
2
Performance
High
Seal Material
Buna-N
Series
DG5V-8 10 Series
Solenoid Energizing ID
Solenoid A at Port A/Solenoid B at Port B
Spool Position Monitor
Without Spool Position Monitor
Spool Type
Spool 4
Spring Arrangement
Spring Centered
Surge Suppressor Damper
Without Surge Suppressor Damper
Valve Mount Type
Subplate/Manifold

Product Questions & Answers (1)

Question by: Earl W on Jul 15, 2025, 8:39 PM
We run die casting equipment and been looking at upgrading our directional valves. This one handle the kind of duty them machines put on a valve?
Answer by: Customer Support on Jul 17, 2025, 7:56 PM
Die casting is actually one of the listed application types for this valve, so it fits right into that environment. The DG5V8H4CETVMFWB10 is a two-stage design built for high-flow industrial circuits, and the Vickers DG5V-8 series was put together with enough flexibility to cover demanding cyclic applications like that. Buna-N seals handle the hydraulic media compatibility side of things, which holds up well across the fluid types commonly used in that kind of equipment.
