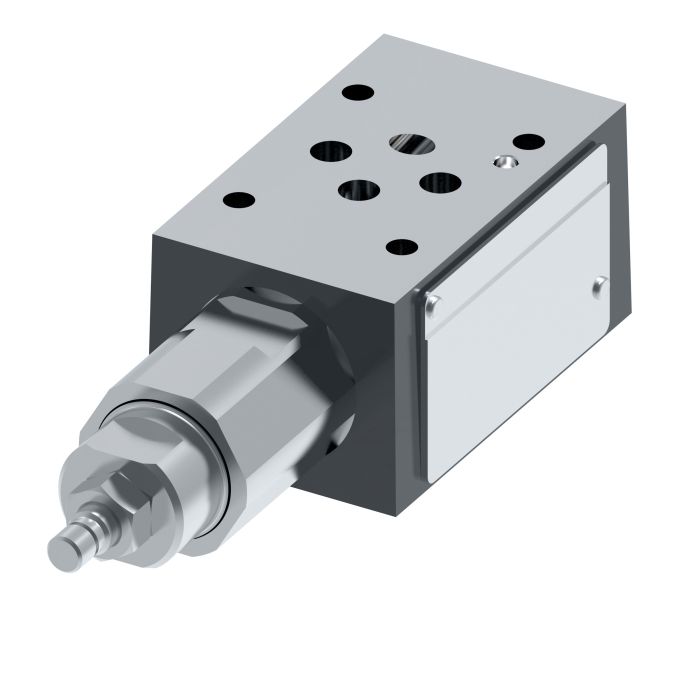

main product photo

VICKERS-DGMC2 3 AT BW BT GW 41

Ask A Question

Description & Features

Designed for versatility, the Vickers DGMC2 3 AT BW BT GW 41 directional control valve is ideal for demanding industrial applications such as die casting, foundry use, machine tools, marine/offshore environments, and turbine control systems. Engineered by Vickers, this valve features a robust Buna-N seal material that ensures durability and resistance to external leakage.

The valve is crafted to minimize installation costs and boost resistance to contamination, making it a reliable choice in primary metal, paper, and press applications. With a flow rate of 60 liters per minute, this valve efficiently manages hydraulic fluid, enhancing system performance in various industrial settings.

SKU: 02-332320

Supplier Part Number (MPN): 02-332320

Specifications

Brand
Vickers by Danfoss
Actuator Type
Pressure Operated
Adjustment Type
Screw and Locknut
Body Material
Iron
Design
41 Series
Dimensions
9.2 in L x 1.87 in W x 1.57 in H
Discharge 1
Discharge into T
Discharge 2
Discharge into T
Domestic/Import
Domestic
First Function
Pressure Limited in A
Function 1 Pressure Adjustment
45 to 1450 psi
Media
Petroleum Oil
Nominal Size
#03
Number of Stages
2
Performance
Standard
Seal Material
FKM
Second Function
Pressure Limited in B
Series
DGMC-2 Series
Valve Mount Type
Subplate/Manifold

Product Questions & Answers (1)

Question by: Tony H on Jan 31, 2026, 9:43 AM
valve's rated for 60 LPM but we run a pretty contaminated environment out on the floor, does this thing hold up or we gonna be fighting leakage problems?
Answer by: Customer Support on Feb 1, 2026, 6:04 PM
Contamination resistance was a core consideration in how this valve was built. The DGMC2-3 uses Buna-N seals, which are solid performers against external leakage, and the design specifically targets improved contamination resistance as a functional priority. For foundry and primary metal environments where fluid cleanliness is a constant battle, that combination tends to hold up well in real-world conditions.
