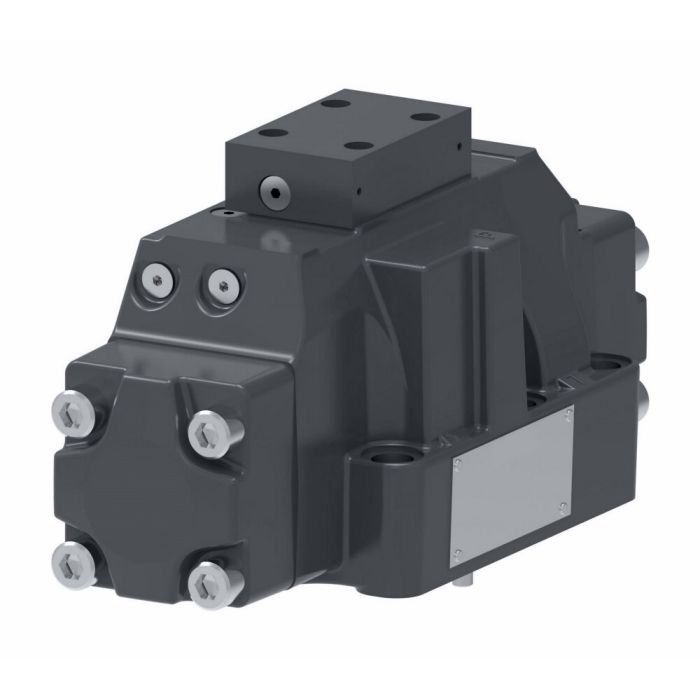

main product photo

VICKERS-DG5V 5 52C T 10 EN55

Ask A Question

Description & Features

Designed for two-stage directional control in demanding industrial environments, the VICKERS-DG5V 5 52C T 10 EN55 is a Cetop 7 subplate-mounted valve with spring-centred main stage configuration. It supports both three- and four-way directional control and is rated for flow up to 160 litres per minute, making it well suited to high-demand hydraulic circuits.

Buna-N seals provide reliable fluid compatibility across a broad range of hydraulic media. The valve mounts on industry-standard Cetop 7 subplate surfaces, simplifying integration into existing manifold arrangements. Suitable applications include machine tools, presses, die casting and foundry equipment, primary metal and paper machinery, marine and offshore systems, turbine control, and test and simulation equipment.

SKU: 02-333196

Supplier Part Number (MPN): 02-333196

Specifications

Brand
Vickers by Danfoss
Actuator Type
Solenoid, Pilot Operated
Design
10 Series
Dimensions
7.87 in L x 2.86 in W x 6.9 in H
Domestic/Import
Domestic
Ext Pilot Pressure
External
Indicator Light
Without Indicator Light
Int Pilot Drain
Internal
Media
Petroleum Oil
Number of Stages
2
Performance
High
Seal Material
Buna-N
Segment Code
C
Series
DG5V-5 10 Series
Special Features
Directional Valve CETOP 7 Subplate Mounted Spring Centered Main Stage Only
Spool Position Monitor
Without Spool Position Monitor
Spool Type
Spool 52
Spring Arrangement
Spring Centered
Surge Suppressor Damper
Without Surge Suppressor Damper
Valve Mount Type
Subplate/Manifold

Product Questions & Answers (2)

Question by: Hank W on Jan 7, 2026, 10:24 AM
flow rate on this one says 160 LPM, that enough for running a big press or heavy-duty machine tool application?
Answer by: Customer Support on Jan 9, 2026, 9:37 AM
For most press and machine tool setups, 160 litres per minute puts this valve well within range for high-demand circuits. That flow capacity is one of the reasons it gets spec'd into those environments alongside die casting equipment, primary metal machinery, and similar high-cycle applications. As long as your system is sized to match that flow, you should be in good shape.
Question by: Terry S on Feb 28, 2026, 12:56 PM
Would this work okay on a die casting machine?
Answer by: Customer Support on Mar 1, 2026, 2:17 PM
This valve is well-suited for die casting and foundry equipment, as well as machine tools and presses.
