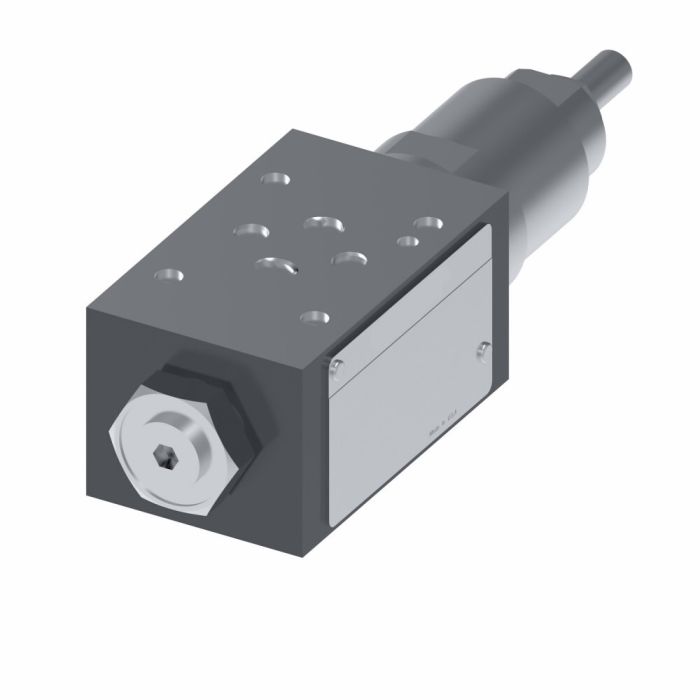

VICKERS DGMX1 3 PP RW S 40

Description & Features

Designed for machine tool and diverse industrial applications, the Vickers DGMX1 3 PP RW S 40 SystemStak Valve provides reliable directional control. With a robust flow rate of 60 liters per minute, this valve efficiently manages hydraulic flow while minimizing installation costs. Enhanced with Buna-N seals, it ensures a secure seal and reduces the risk of external leakage, thus bolstering resistance to contamination.

Engineered by Vickers, a brand known for its high-quality hydraulic solutions, this directional control valve offers seamless integration into existing systems. Its compact design, with a width of 2.82 inches, allows for easy installation in tight spaces without compromising performance. Whether in a factory setting or a heavy machinery environment, this valve is built to deliver consistent and dependable operation.

SKU: 02-333603

Supplier Part Number (MPN): 02-333603

Specifications

Actuator Type Pressure Operated	Adjustment Location Adjuster - B Port End of Valve	Adjustment Type Screw and Locknut	Body Material Iron	Connection Type Female UNF	Design Series 40 Series	Dimensions 8.05 in L x 2.82 in W x 2.36 in H	Domestic/Import Domestic	End Type Female UNF	Function Ports Reducing Line P, Pilot Line P	Gauge Port Thread SAE 4 (7/16-20 UNF-2B)	Language English	Media Petroleum Oil	Nominal Size #03	Number of Ports/Ways 3-Port	Number of Stages 1	Performance Standard	Seal Material FKM	Series DGMX1-3 Series	Valve Mount Type Subplate/Manifold

Product Questions & Answers (2)

Question by: Patty T on Apr 19, 2025, 6:00 PM

Reckon this'll fit right in my setup without too much fuss?

Answer by: Customer Support on Apr 21, 2025, 6:18 AM

This SystemStak valve's compact design, with a width of 2.82 inches, should make it easier to fit into tight spaces.

Question by: Lyle B on Aug 14, 2025, 2:34 PM

Flow rate on this one says 60 liters per minute, is that enough for most machine tool setups or is it on the lower end?

Answer by: Customer Support on Aug 16, 2025, 1:12 PM

For the majority of machine tool applications, 60 liters per minute is a solid working figure. Most standard machine tool circuits don't push anywhere near that ceiling during normal operation, so you've got good headroom without oversizing the valve and driving up cost. Where you might want to double-check is if your system runs multiple simultaneous actuators with high demand cycles, but for single-axis or moderate multi-axis setups, this valve handles the load without issue.
