Vickers-F3 V2010NF 6F9S6T 11BA4H12L

Ask A Question

Description & Features

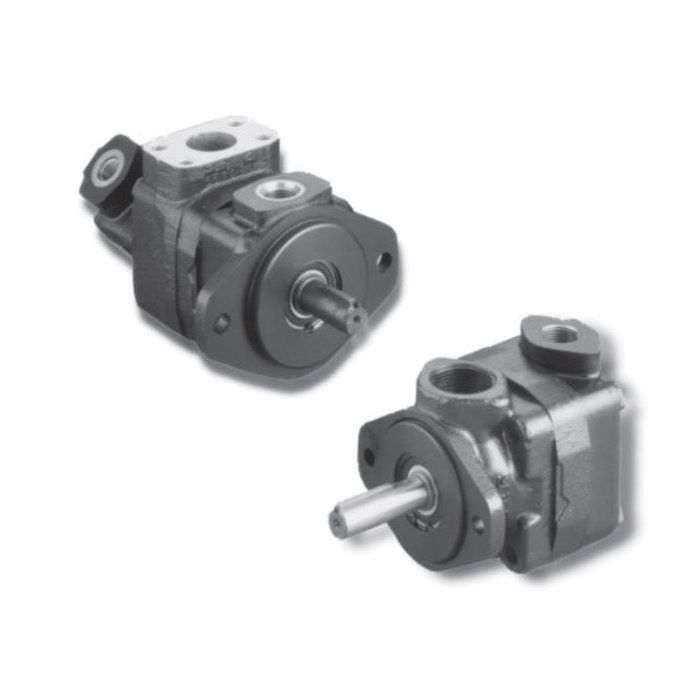

This Vickers-F3 V2010NF 6F9S6T 11BA4H12L vane pump by Danfoss / Eaton V10 and V20 series features a pressure-balanced, modular 12-vane design to reduce noise and flow pulsation. With a flow rate of 76.27968 liters per minute, it is well-suited for power steering and industrial applications such as small units and small presses.

Constructed from durable cast iron with Viton seals, this Vickers vane pump offers a wide range of available displacements and special features.

SKU: 02-335910-K

Supplier Part Number (MPN): 02-335910-K

Specifications

Brand
Vickers by Danfoss
Cover Type
Flow Control Valve Cover internal Drain
Design Code
12
Dimensions
10.46 in L x 6.87 in W x 5 in H
Displacement
34.8 cc/rev Shaft, 23.5 cc/rev Cover
Drive Shaft Type
Splined
Flow Rate
9 gpm Shaft, 6 gpm Cover
Housing Material
Iron
Inlet Port Type
4-Bolt Flange
Mounting Type
Flange
Number of Stages
1
Outlet Port Type Cover Side
P Port - 3/4-16 UN-2B, T Port - 3/4-16 UN-2B
Outletcover Port Orientation
Outlet 2: 135 deg CCW From Inlet Port, Outlet 1: 90 deg CCW From Inlet Port
Rotation Direction
Counterclockwise
Seal Material
FKM
Seals Type
All FKM Seals
Series
V2010NF Series
Shaft Rotation
Right Hand CW Rotation Viewed from Shaft End
Shaft Type
11-Tooth 16/32 Major Dia 0.873, Extension-1.62
Vane Type
Pressure-Balanced

Product Questions & Answers (2)

Question by: Freddie H on May 8, 2025, 9:55 PM
Reckon this pump'll hold up in a power steering setup on my old Ford?
Answer by: Customer Support on May 10, 2025, 6:12 AM
This Vickers vane pump is indeed well-suited for power steering applications, as well as for smaller industrial units and presses.
Question by: Dwayne M on Sep 28, 2025, 6:18 PM
Flow rate on this one shows just over 76 liters a minute, is that enough for running a small hydraulic press without it bogging down?
Answer by: Customer Support on Sep 30, 2025, 2:48 PM
For small press applications, 76.27 liters per minute is a solid match. The V2010 series was built with exactly that kind of use in mind, so you're not pushing it outside its intended range. The pressure-balanced vane design also helps keep things smooth under load, which matters when you're cycling a press repeatedly and don't want flow pulsation messing with your pressure consistency.
