VICKERS-KDG4V-3S-33C08A-M-KU-HA5-60-EN50

Description & Features

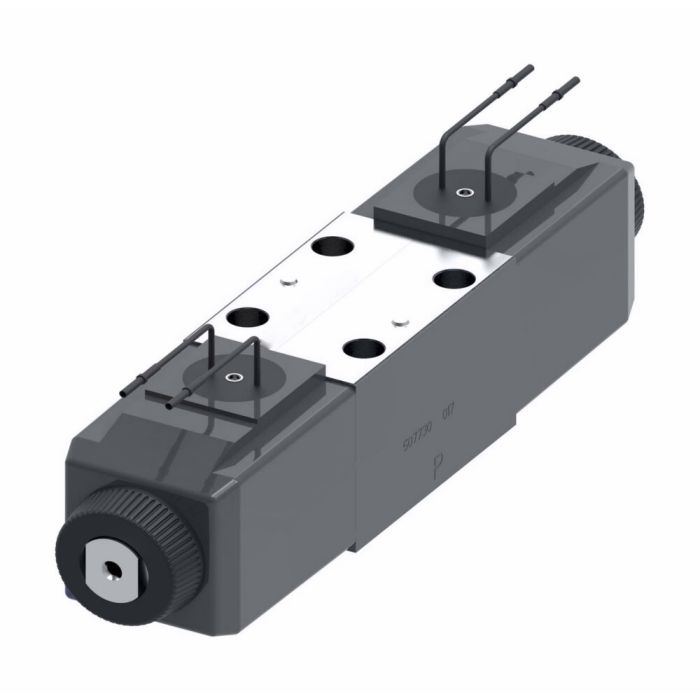

Designed for demanding industrial environments, the VICKERS-KDG4V-3S-33C08A-M-KU-HA5-60-EN50 is a direct-acting proportional valve from Vickers by Danfoss/Eaton, available in three performance levels, ultra, high, and standard, to suit a broad range of application requirements. With a flow rate of 8 litres per minute and fluorocarbon seals, this valve is built for reliable service in conditions where fluid compatibility and durability are critical.

Plug-and-play functionality reduces commissioning time, making this valve well-suited for integration into new or existing hydraulic circuits. Typical applications include die casting and foundry equipment, machine tools, marine and offshore systems, presses, primary metal processing, plastics machinery, pulp and paper production, and test equipment. The valve conforms to EN50 standards and is documented in English.

SKU: 02-336402

Supplier Part Number (MPN): 02-336402

Specifications

Brand Vickers by Danfoss	Actuator Type Solenoid Controlled	Build Type Spring Centered	Design Series 60 Series	Dimensions 9.37 in L x 1.9 in W x 3.4 in H	Domestic/Import Domestic	Electrical Connection Top Exit Flying Leads	Feedback Sensor Without Feedback Sensor	Language English	Manual Override Plain	Media Anti-Wear Hydraulic Oil, Non-Alkyl Based Phosphate Ester	Metering Meter-In	Number of Stages 1	On Board Electronics Without On Board Electronics	Performance Standard	ProFX Compatible Without ProFX Compatible	Reducer Module Without Reducer Module	Reverse Flow Check Without Reverse Flow Check	Seal Material FKM	Series KDG4V-3 60 Series	Special Features Deutsch Connector Coils and Special 0.66 in Dia Orifice in P Port	Spool Type P Blocked, A and B to Tank	Symmetric Flow With Symmetric Flow	Valve Mount Type Subplate

Similar Products

Model Number	Flow Rate	Voltage Rating	Dimensions	Price	Action
02-325874			8.64 in L x 1.81 in W x 3.58 in H
02-364927			8.64 in L x 1.81 in W x 3.58 in H
02-391545			8.64 in L x 1.81 in W x 3.58 in H
02-397158			8.64 in L x 1.81 in W x 3.58 in H
02-398973			8.64 in L x 1.81 in W x 3.58 in H
02-401709			8.64 in L x 1.81 in W x 3.58 in H
