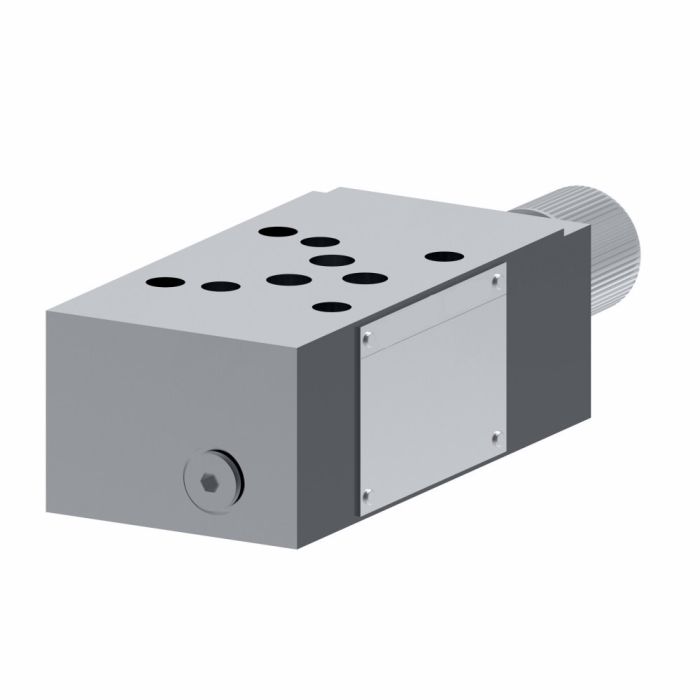

VICKERS DGMC 5 AT AH S 30

Ask A Question

Description & Features

The Vickers DGMC 5 AT AH S 30 is a SystemStak valve designed for directional control in demanding hydraulic applications.

This Vickers valve is suitable for use in die casting and foundry equipment, machine tools, marine and offshore systems, presses, primary metal processing, paper mills, test equipment, simulation systems, and turbine control (wind, steam, and water). It offers a flow rate of 120 liters per minute. Constructed with Buna-N seals, the valve is 2.82 inches wide. SystemStak modular design reduces installation costs, eliminates external leakage, and boosts resistance to contamination.

SKU: 02-336828

Supplier Part Number (MPN): 02-336828

Specifications

Actuator Type
Pressure Operated
Adjustment Type
Knob
Body Material
Iron
Connection Type
SAE
Design
30 Series
Dimensions
7.9 in L x 2.82 in W x 1.97 in H
Domestic/Import
Domestic
End Type
SAE
External Drain
Without External Drain
Gauge Port Thread
SAE 4 O-ring Boss Port
Media
Petroleum Oil
Nominal Size
#5
Number of Stages
1
Performance
Standard
Port Drained Into
Tank Port
Port Operated Upon
A Cylinder Port
Remote Control Port
Without Remote Control Port
Seal Material
FKM
Series
DGMC Series
Valve Mount Type
Subplate/Manifold

Product Questions & Answers (2)

Sign In Hover me Please sign in to submit a question
Question by: Duane M on Feb 12, 2026, 1:55 PM
flow rate on this thing is listed at 120 liters per minute -- is that enough for press and die casting work or is it cutting it close for those applications?
Answer by: Customer Support on Feb 14, 2026, 6:34 AM
For press and die casting equipment, 120 liters per minute is a solid flow capacity and falls well within the range those applications typically demand. The DGMC-5 is rated for both press and die casting use, so you're not working against the valve's design when running it in those environments. As long as your system requirements stay within that 120 lpm ceiling, you're in good shape.
Question by: Brent G on Dec 9, 2025, 7:49 AM
How wide is this valve? Just need to make sure it'll fit in the space I got.
Answer by: Customer Support on Dec 11, 2025, 7:45 AM
At its widest point, this Vickers valve measures 2.82 inches.
