VICKERS DG4V4012AMUB510

Description & Features

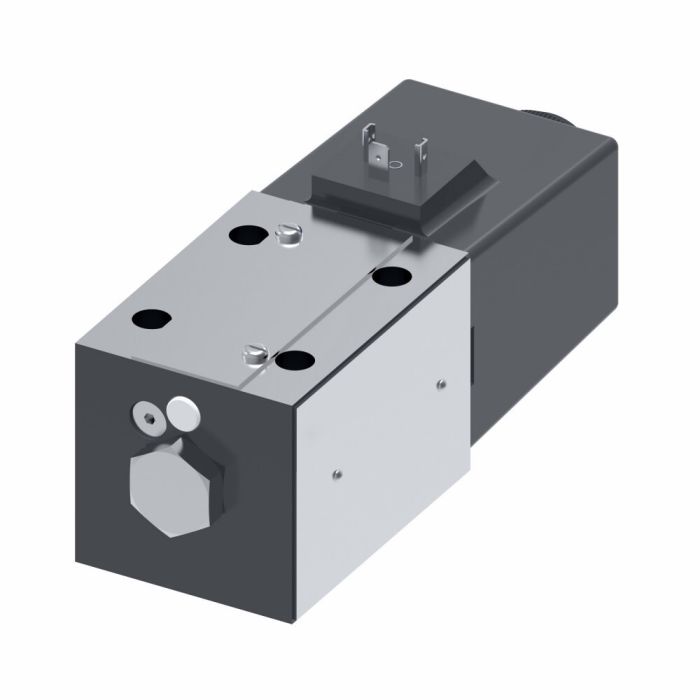

The Vickers DG4V4012AMUB510 from Danfoss (Power Solutions II LLC) is engineered for applications such as die casting & foundry machine tool marine/offshore press primary metal paper test equipment & simulation and turbine control (wind steam water). This directional control valve offers three- or four-way directional control and can be easily mounted on industry-standard surfaces.

This product belongs to the IV Directional Control Valves category ensuring reliable performance for demanding industrial environments. The Vickers DG4V4012AMUB510 does not require calibration and features Buna-N seal material for durability.

With a wattage of 30 and ample width of 2.84 inches this valve is a robust choice for various industrial applications. The valve does not include a battery blades check valve diode or switch connector. It also features no adjustment or remote control capabilities.

MPN: EAR99

Supplier Part Number: 02-337539

Specifications

Brand Vickers by Danfoss	Actuator Type Solenoid	Design 10 Series	Dimensions 6.88 in L x 2.84 in W x 4.31 in H	Domestic/Import Domestic	Indicator Light Without Indicator Light	Manual Override Plain	Media Petroleum Oil	Number of Stages 1	Performance Standard	Seal Material Buna-N	Segment Code A	Series DG4V4-01 10 Series	Spool Position Monitor Without Spool Position Monitor	Spool Type Spool 2	Spring Arrangement Spring Offset End to End	Surge Suppressor Damper Without Surge Suppressor Damper	Valve Mount Type Subplate/Manifold

Similar Products

Model Number	Seal Material	Dimensions
02-337079	Buna-N	9.38 in L x 2.84 in W x 4.31 in H
02-337537	Buna-N	9.38 in L x 2.84 in W x 4.31 in H
02-337540	Buna-N	9.38 in L x 2.84 in W x 4.31 in H
02-337541	Buna-N	9.38 in L x 2.84 in W x 4.31 in H
02-337544	Buna-N	9.38 in L x 2.84 in W x 4.31 in H
02-337807	FKM	6.88 in L x 2.84 in W x 4.31 in H
02-339831	Buna-N	6.88 in L x 2.84 in W x 4.31 in H
02-344965	Water Glycol	6.88 in L x 2.84 in W x 4.31 in H
02-355354	Buna-N	6.88 in L x 2.84 in W x 4.31 in H
02-355396	Buna-N	9.38 in L x 2.84 in W x 4.31 in H
02-356877	Buna-N	6.88 in L x 2.84 in W x 4.31 in H
02-361387	Buna-N	6.88 in L x 2.84 in W x 4.31 in H
02-362530	Water Glycol	9.38 in L x 2.84 in W x 4.31 in H
02-364740	Buna-N	6.88 in L x 2.84 in W x 4.31 in H
02-393213	Water Glycol	9.38 in L x 2.84 in W x 4.31 in H
02-396349	Buna-N	6.88 in L x 2.84 in W x 4.31 in H
02-402438	Buna-N	9.38 in L x 2.84 in W x 4.31 in H
02-402443	Buna-N	9.38 in L x 2.84 in W x 4.31 in H

Product Questions & Answers (3)

Question by: Ross C on Apr 8, 2025, 10:14 AM

Can this valve handle continuous operation in a hydraulic press setup, or is it more suited for intermittent use?

Answer by: Customer Support on Apr 10, 2025, 6:28 AM

This directional control valve is built for demanding industrial environments, so it should hold up fine in a hydraulic press application.

Question by: Billy B on Jan 16, 2026, 9:09 AM

flow rate on this one, is 115 liters per minute enough for a press application or should i be lookin at somethin with more capacity?

Answer by: Customer Support on Jan 17, 2026, 5:23 PM

For most press setups, 115 liters per minute is a solid working range. The DG4V4012AMUB510 is listed specifically for press applications alongside die casting, machine tool, and primary metal work, so it's been put through its paces in those kinds of environments. Whether that flow rate covers your particular press comes down to your system's demand, but it's not a light-duty number by any stretch.

Question by: Curt M on Sep 17, 2025, 1:14 PM

got a DG4V4012AMUB510 on the machine now, is this the same part or am i gonna get burned on a mismatch

Answer by: Customer Support on Sep 19, 2025, 9:31 AM

Match it by the part number. DG4V4012AMUB510 is shown as the product’s alternate part number, and the supplier part number is 02-337539.
