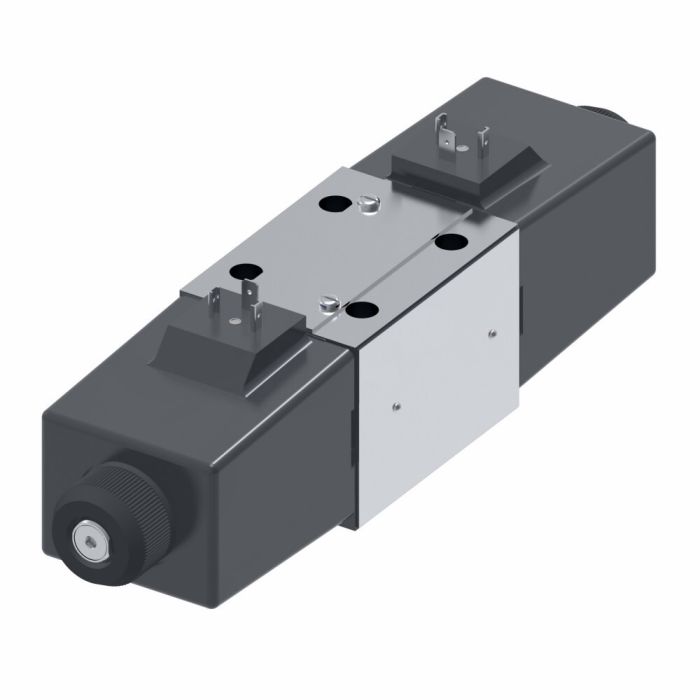

VICKERS DG4V4-012N-M-U-B-5-10

Description & Features

Designed for demanding industrial hydraulic systems, the Vickers DG4V4-012N-M-U-B-5-10 is a single-stage directional control valve offering reliable three- or four-way flow direction control at flow rates up to 115 litres per minute. With a power draw of 30 watts and Buna-N seals, it is well-suited for applications where consistent performance and chemical compatibility are priorities.

This valve mounts on industry-standard surfaces, simplifying integration into existing hydraulic circuits across a broad range of industries. Supported applications include machine tool, press, die casting and foundry, primary metal and paper, marine and offshore, turbine control, and test equipment and simulation environments. The Vickers product line provides thousands of model configurations to accommodate varied system requirements.

SKU: 02-337541

Supplier Part Number (MPN): 02-337541

Specifications

Brand Vickers by Danfoss	Actuator Type Solenoid	Design 10 Series	Dimensions 9.38 in L x 2.84 in W x 4.31 in H	Domestic/Import Domestic	Indicator Light Without Indicator Light	Manual Override Plain	Media Petroleum Oil	Number of Stages 1	Performance Standard	Seal Material Buna-N	Segment Code A	Series DG4V4-01 10 Series	Spool Position Monitor Without Spool Position Monitor	Spool Type Spool 2	Spring Arrangement No Spring Detented	Surge Suppressor Damper Without Surge Suppressor Damper	Valve Mount Type Subplate/Manifold

Similar Products

Model Number	Seal Material	Dimensions
02-337079	Buna-N	9.38 in L x 2.84 in W x 4.31 in H
02-337537	Buna-N	9.38 in L x 2.84 in W x 4.31 in H
02-337539	Buna-N	6.88 in L x 2.84 in W x 4.31 in H
02-337540	Buna-N	9.38 in L x 2.84 in W x 4.31 in H
02-337544	Buna-N	9.38 in L x 2.84 in W x 4.31 in H
02-337807	FKM	6.88 in L x 2.84 in W x 4.31 in H
02-339831	Buna-N	6.88 in L x 2.84 in W x 4.31 in H
02-344965	Water Glycol	6.88 in L x 2.84 in W x 4.31 in H
02-355354	Buna-N	6.88 in L x 2.84 in W x 4.31 in H
02-355396	Buna-N	9.38 in L x 2.84 in W x 4.31 in H
02-356877	Buna-N	6.88 in L x 2.84 in W x 4.31 in H
02-361387	Buna-N	6.88 in L x 2.84 in W x 4.31 in H
02-362530	Water Glycol	9.38 in L x 2.84 in W x 4.31 in H
02-364740	Buna-N	6.88 in L x 2.84 in W x 4.31 in H
02-393213	Water Glycol	9.38 in L x 2.84 in W x 4.31 in H
02-396349	Buna-N	6.88 in L x 2.84 in W x 4.31 in H
02-402438	Buna-N	9.38 in L x 2.84 in W x 4.31 in H
02-402443	Buna-N	9.38 in L x 2.84 in W x 4.31 in H

Product Questions & Answers (2)

Question by: Dwight R on Oct 19, 2025, 7:08 AM

flow rate on this one is listed at 115 litres per minute -- is that enough for press applications or would it be cutting it close?

Answer by: Customer Support on Oct 21, 2025, 6:12 AM

For press applications, 115 litres per minute is a solid working capacity and sits well within the range that most press circuits actually demand. Vickers lists press work as one of the supported applications for this valve, so it's not a borderline fit. Whether it's enough for your specific setup depends on your system's peak demand, but the flow rating itself isn't the limiting factor for typical press use.

Question by: Warren A on May 25, 2025, 10:05 AM

I'm trying to make sure this will fit on the equipment we already have... are the mounting surfaces industry standard?

Answer by: Customer Support on May 27, 2025, 8:42 AM

This valve is easily mountable on industry-standard surfaces, so integration into existing hydraulic circuits should be straightforward.
