DG5V-8-H-33C-M-U-B-10

Description & Features

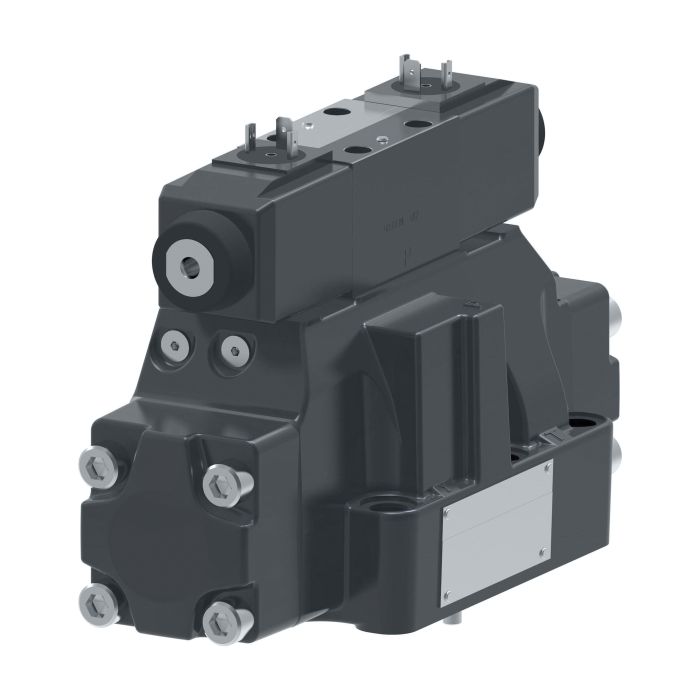

The Vickers by Danfoss DG5V-8-H-33C-M-U-B-10 directional control valve is a two-stage valve designed for demanding industrial applications. This three- or four-way directional control valve is suitable for die casting and foundry equipment, machine tools, marine and offshore systems, presses, primary metal processing, paper mills, test equipment and simulation, and turbine control systems utilizing wind, steam, or water.

Featuring a Buna-N seal material, this Vickers valve offers reliable performance in a variety of environments. With a flow rate of 700 liters per minute, the valve is easily mounted on industry-standard surfaces. Thousands of models are available to suit diverse applications.

SKU: 02-337583

Supplier Part Number (MPN): 02-337583

Specifications

Actuator Type Pilot Operated, Solenoid	Body Material Iron	Design 10 Series	Dimensions 10.45 in L x 4.67 in W x 7.79 in H	Domestic/Import Domestic	Electrical Connection ISO 4400 (DIN 43650) Connector	Enclosure Type IP65, NEMA 4	Ext Pilot Pressure Internal	Indicator Light Without Indicator Light	Int Pilot Drain External	Language English	Manual Override Plain	Media Petroleum Oil	Nominal Size #08	Number of Ports/Ways 4-Port	Number of Stages 2	Performance High-Performance	Port Type SAE	Seal Material Buna-N	Series DG5V-8 10 Series	Softgoods Material Nitrile	Spool Type Spool 33	Spring Arrangement Spring Centered	Surge Suppressor Damper Without Surge Suppressor Damper	Valve Mount Type Subplate/Manifold

Product Questions & Answers (1)

Question by: Gary J on Apr 20, 2025, 2:21 PM

Is this valve gonna work on my die casting machine?

Answer by: Customer Support on Apr 21, 2025, 8:55 PM

This Vickers valve is indeed suitable for die casting and foundry equipment applications, as well as machine tools, marine and offshore systems, presses, primary metal processing, paper mills, test equipment and simulation, and turbine control systems.
