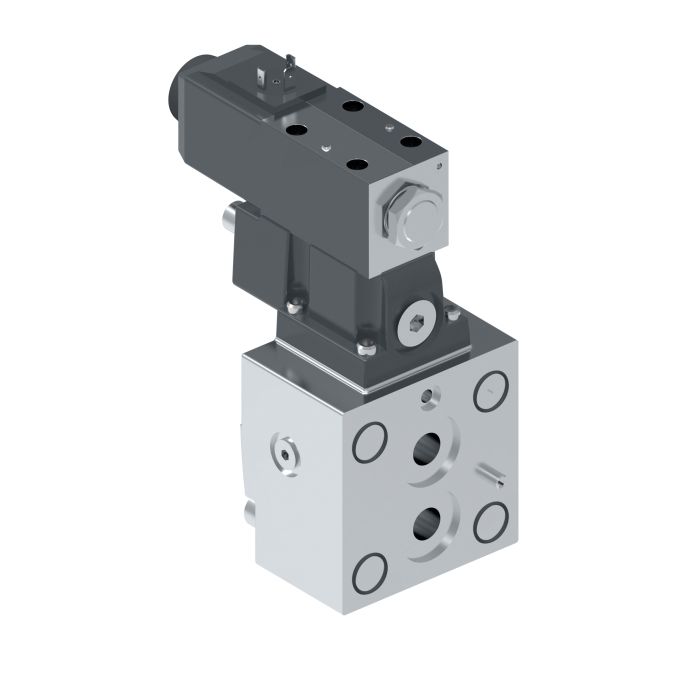

Vickers CT5 100A CMU B6 0110

Description & Features

Designed for hydraulic circuits that require adjustable pressure control, this relief and regulating valve limits system pressure to a defined maximum with consistent, repeatable performance. The Vickers CT5 100A CMU B6 0110 supports flow rates up to 454 litres per minute and features Buna-N seals suited to standard hydraulic fluid compatibility.

A plug-and-play design simplifies installation and integration into existing circuits, while moisture-resistant construction supports use in demanding industrial environments. This valve falls within the Vickers pressure valve category and is well-suited to applications where reliable pressure limiting is critical to circuit integrity.

SKU: 02-337587

Supplier Part Number (MPN): 02-337587

Specifications

Actuator Type Pilot Operated, Solenoid	Adjustment Type Screw with Locknut	Body Material Iron	Design 110 Series	Dimensions 7.87 in L x 3.28 in W x 9.97 in H	Domestic/Import Domestic	Hi-Vent Spring Without Hi-Vent Spring	Indicator Light Without Indicator Light	Manual Override Plain	Media Petroleum Oil	Nominal Size 10	Number of Stages 2	Performance Standard	Seal Material Buna-N	Series CT5-10 Series	Spring Arrangement Spring Offset	Valve Mount Type 1-1/4 in NPT Pipe	Voltage Rating 110 VAC at 50 Hz, 120 VAC at 60 Hz

Product Questions & Answers (1)

Question by: Warren B on Jun 24, 2025, 7:40 AM

Flow rate on this thing goes up to 454 litres per minute, that enough headroom for a mid-to-large industrial circuit running adjustable pressure relief?

Answer by: Customer Support on Jun 26, 2025, 7:13 AM

For most mid-to-large hydraulic circuits that need adjustable pressure relief, 454 litres per minute gives you solid headroom. That capacity puts it well above what a lot of standard pressure control valves offer, so if your circuit isn't pushing past that ceiling, you're in good shape. It's built for applications where you need to set a reliable pressure maximum and have the system hold to it consistently, which is exactly what this valve is rated to do.
