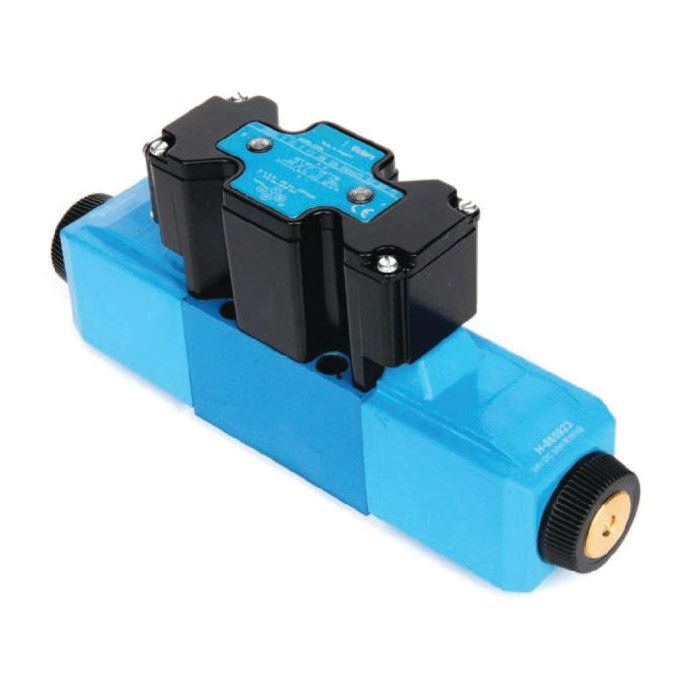

main product photo

VICKERS DG4V3S8CVMUHL761EN490

Ask A Question

Description & Features

Designed for demanding industrial environments, the Vickers DG4V3S8CVMUHL761EN490 is a single-stage directional control valve engineered for three- or four-way flow control at up to 40 litres per minute. It uses a CMX-style solenoid with a 17.5mm core tube and is rated at 30 watts, making it suitable for mobile market installations per drawing references 02-305224 and 02-309360.

Buna-N seals provide reliable compatibility across a wide range of hydraulic fluids. The valve mounts on industry-standard surfaces and is released as an option for mobile environments, with capability to replace high-pressure valves in 3000 psi tank line applications. Applicable across die casting and foundry, machine tool, marine and offshore, press, primary metal and paper, test equipment and simulation, and turbine control applications, including wind, steam, and water, this valve covers a broad range of industrial use cases within a compact, standardised form factor.

SKU: 02-337819

Supplier Part Number (MPN): 02-337819

Specifications

Brand
Vickers by Danfoss
Actuator Type
Solenoid
Design
61 Series
Dimensions
6.14 in L x 1.8 in W x 3.42 in H
Domestic/Import
Domestic
Indicator Light
Without Indicator Light
Manual Override
Plain
Media
Petroleum Oil
Number of Stages
1
Performance
Standard
Seal Material
FKM
Segment Code
B
Series
DG4V-3 61 Series
Solenoid Energizing ID
Solenoid A at Port A/Solenoid B at Port B
Special Features
For Mobile Equipment
Spool Position Monitor
Without Spool Position Monitor
Spool Type
Spool 8
Spring Arrangement
Spring Centered
Surge Suppressor Damper
Without Surge Suppressor Damper
Valve Mount Type
Subplate/Manifold

Product Questions & Answers (1)

Question by: Lyle H on Jul 19, 2025, 7:01 AM
Is this valve gonna work in place of my old one on a mobile setup, like you'd see on a truck?
Answer by: Customer Support on Jul 20, 2025, 8:11 AM
Yes, this directional control valve is released as an option for mobile environments, and the specs are designed to replace high-pressure valves in 3000 psi tank line applications. Just make sure your setup matches the specs in drawings 02-305224 and 02-309360.
