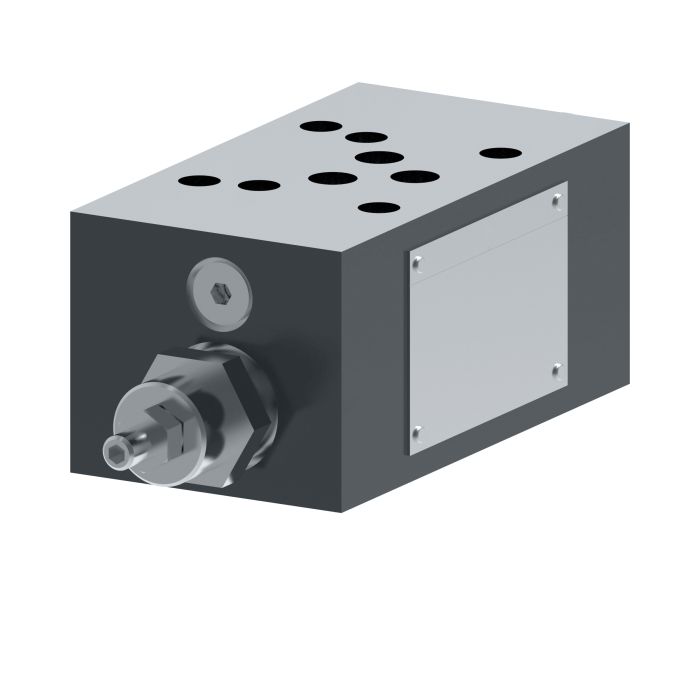

Vickers DGMC2 5 AB FW BA FW S 30

Description & Features

Rated for flows up to 120 litres per minute, the Vickers DGMC2 5 AB FW BA FW S 30 is a SystemStak directional control valve designed for demanding industrial hydraulic circuits. Buna-N seals provide reliable fluid compatibility across a broad range of hydraulic media, while the SystemStak mounting configuration eliminates external leakage paths and reduces installation costs by minimising discrete connections between components.

Built to handle contamination-prone environments, this valve offers strong resistance to particulate ingress, a practical advantage in applications such as die casting, foundry equipment, press systems, machine tools, and primary metal processing. It is also suited for marine and offshore installations, turbine control systems covering wind, steam, and water, and test and simulation equipment where precise directional control is required.

SKU: 02-338292

Supplier Part Number (MPN): 02-338292

Specifications

Actuator Type Pressure Operated	Adjustment Type Screw and Locknut	Body Material Iron	Connection Type SAE	Design 30 Series	Dimensions 8.46 in L x 2.82 in W x 1.97 in H	Domestic/Import Domestic	End Type SAE	External Drain Without External Drain	Function 1 Pressure Adjustment 60 to 2900 psi	Function 2 Pressure Adjustment 60 to 2900 psi	Gauge Port Thread SAE 4 O-ring Boss Port	Media Petroleum Oil	Nominal Size #5	Number of Stages 2	P Port Acted Upon B Cylinder Port	Performance Standard	Port Drained Into B Cylinder Port	Port Operated Upon A Cylinder Port	Remote Control Port Without Remote Control Port	Seal Material FKM	Segment Code B	Series DGMC-2 Series	Valve Mount Type Subplate/Manifold

Product Questions & Answers (2)

Question by: Merle S on Jul 26, 2025, 7:32 AM

flow rate on this one is 120 LPM, does that hold up in press and die casting setups or is that more of an ideal-conditions number?

Answer by: Customer Support on Jul 28, 2025, 6:19 AM

For press systems and die casting applications, 120 litres per minute is the rated maximum flow for this valve, and those are two of the environments it's specifically built for. The SystemStak mounting design helps by cutting down on the connection points where pressure losses and leakage typically sneak in, so you're not fighting inefficiencies before the fluid even reaches the work. The Buna-N seals also handle the hydraulic media common in those environments without breaking down, which matters when you're running hard cycles.

Question by: Ronnie M on Aug 26, 2025, 7:21 AM

If I'm usin' this in a press system, how well does it hold up to contamination?

Answer by: Customer Support on Aug 28, 2025, 6:10 AM

Built specifically to handle environments where particulate contamination is common, this directional control valve offers strong resistance to ingress, which makes it well-suited for press systems.
