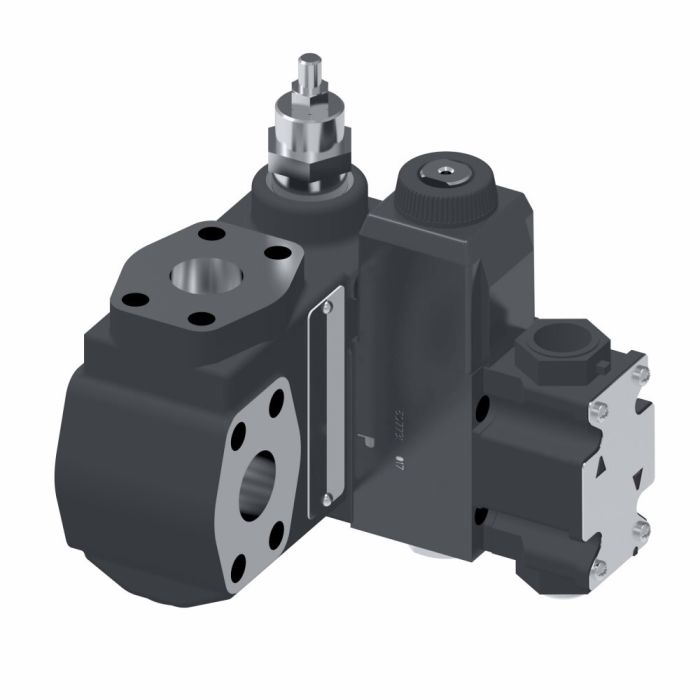

main product photo

VICKERS-CPF2S-06-F-H-3S-M-FTWL-B5-20

Ask A Question

Description & Features

Designed for hydraulic circuits that require precise pressure control, this Vickers by Danfoss pressure control valve delivers reliable performance as either an adjustable relief or pressure-regulating valve, limiting circuit pressure to a set maximum. The VICKERS-CPF2S-06-F-H-3S-M-FTWL-B5-20 is rated for flow up to 100 litres per minute and features a plug-and-play design that simplifies installation in new and existing systems.

Buna-N seals provide moisture resistance and durability across a range of hydraulic media. With a 30W power rating and a construction suited to demanding industrial environments, this valve is a practical choice for size 06 cetop-mount pressure valve applications where consistent, adjustable pressure management is required.

SKU: 02-339455

Supplier Part Number (MPN): 02-339455

Specifications

Brand
Vickers by Danfoss
Actuator Type
Solenoid
Adjustment Type
Handknob without Keylock
Body Material
Iron
Connection Type
SAE
Design
20 Series
Dimensions
5.5 in L x 2.5 in W x 7.45 in H
Domestic/Import
Domestic
Drain
Internal
Electrical Connection
1/2 in NPT Flying Leads Terminal Block
End Type
SAE
Gauge Port Thread
1/4 in BSP
Hi-Vent Spring
Without Hi-Vent Spring
Indicator Light
With Indicator Light
Manual Override
Plain
Media
Petroleum Oil
Nominal Size
3/4 in
Number of Stages
2
Performance
Standard
Seal Material
Buna-N
Series
CPF2S-06 Series
Valve Mount Type
Flange-Mounted
Voltage Rating
110 VAC at 50 Hz, 120 VAC at 60 Hz

Product Questions & Answers (2)

Question by: Dwayne C on Feb 3, 2026, 7:06 PM
Is this here valve something I can just swap right in for the old Vickers one?
Answer by: Customer Support on Feb 4, 2026, 7:54 PM
Designed for simple setup, this Vickers pressure control valve features a plug-and-play design, which should make it straightforward to install in both new and existing hydraulic systems that use a size 06 cetop-mount.
Question by: Roger F on Jul 12, 2025, 9:03 PM
flow rate on this one's listed at 100 litres per minute, that right? trying to size it up for a circuit we're reworking and want to make sure it'll handle what we're pushing through
Answer by: Customer Support on Jul 14, 2025, 6:19 AM
Correct, 100 litres per minute is the rated flow for this valve. If your circuit stays within that range, it should handle the volume without issue. Just make sure your pressure setpoint and line sizing are matched up on the rest of the circuit side before you button everything up.
