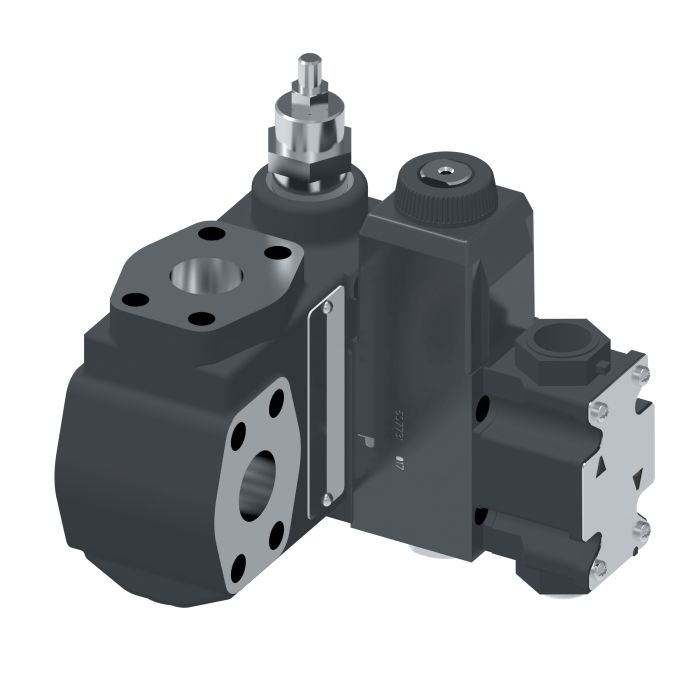

Vickers CPF2S 10 G W 3S M FTWL B5 20

Description & Features

Designed for hydraulic circuits that require precise maximum pressure limiting, this Vickers pressure control valve supports both relief and regulating functions in a single, adjustable unit. Buna-N seals provide reliable fluid compatibility across a broad range of hydraulic media, while the moisture-resistant construction suits demanding industrial environments.

The Vickers CPF2S 10 G W 3S M FTWL B5 20 handles flow rates up to 600 litres per minute and operates at 30 watts, making it well-suited for medium-to-high flow hydraulic systems. A plug-and-play design simplifies installation and reduces commissioning time, with high-performance internals that maintain consistent pressure regulation under load.

SKU: 02-339489

Supplier Part Number (MPN): 02-339489

Specifications

Actuator Type Solenoid	Adjustment Type Screw with Locknut	Body Material Iron	Connection Type SAE	Design 20 Series	Dimensions 7.42 in L x 6.57 in W x 6.58 in H	Domestic/Import Domestic	Drain Internal	Electrical Connection 1/2 in NPT Flying Leads Terminal Block	End Type SAE	Gauge Port Thread 1/4 in BSP	Hi-Vent Spring Without Hi-Vent Spring	Indicator Light With Indicator Light	Manual Override Plain	Media Petroleum Oil	Number of Stages 2	Performance Standard	Seal Material Buna-N	Series CPF2S-10 Series	Valve Mount Type Flange-Mounted	Voltage Rating 110 VAC at 50 Hz, 120 VAC at 60 Hz

Product Questions & Answers (2)

Question by: Troy S on Aug 11, 2025, 9:28 AM

Flow rate on this thing is listed at 600 litres per minute, is that enough for a medium-duty hydraulic setup or is this more of a high-flow unit?

Answer by: Customer Support on Aug 12, 2025, 5:44 PM

Six hundred litres per minute puts it comfortably in medium-to-high flow territory. For most medium-duty hydraulic circuits, that capacity gives you plenty of headroom, so you're not going to be pushing this valve anywhere close to its limits under normal operating conditions. It's a solid fit if your system demands consistent pressure regulation without a lot of babysitting.

Question by: Lyle M on Jan 13, 2026, 7:39 PM

What sort of hydraulic systems does this pressure control valve work best with?

Answer by: Customer Support on Jan 15, 2026, 6:09 AM

Designed for hydraulic circuits needing precise pressure control, this Vickers valve is well-suited for medium-to-high flow hydraulic systems, handling flow rates up to 600 litres per minute.
