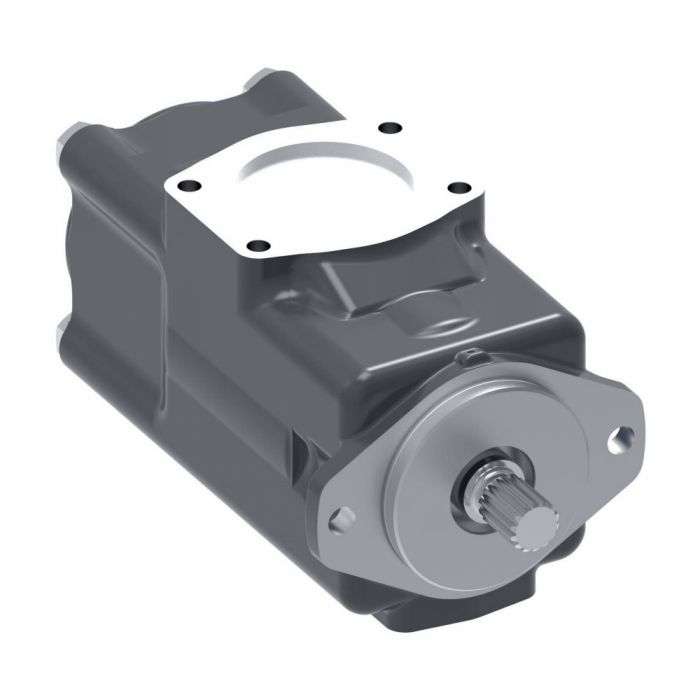

VICKERS 2520VQSV10P21A12K6S297CBC5H20R

Description & Features

The Vickers 2520VQSV10P21A12K6S297CBC5H20R vane pump excels in demanding high-pressure, high-speed industrial applications, especially power steering and small press units. Its durable cast iron construction and Buna-N seals ensure reliable performance and extended operating life.

This Vickers pump offers outstanding volumetric efficiency, making it a dependable choice for various hydraulic requirements. With a width of 6.88 inches, it's designed for efficient integration into hydraulic systems.

SKU: 02-341370

Supplier Part Number (MPN): 02-341370

Specifications

Brand Vickers by Danfoss	Cartridge Type 20 Design	Dimensions 6.88 in W	Displacement 2 cu-in Shaft, 4.1 cu-in Cover	Drive Shaft Type Splined	Flow Rate 10 gpm Shaft, 21 gpm Cover	Housing Material Iron	Maximum Operating Pressure 2500 psi	Rotation Direction Clockwise, Counter Clockwise	Seal Material Buna-N	Series 2520V Series	Vane Type Fixed Displacement and Balanced

Similar Products

Model Number	Displacement	Flow Rate	Rotation Direction
02-159788-G	2.8 cu-in Shaft, 1.9 cu-in Cover	14 gpm Shaft, 9 gpm Cover	Counterclockwise
02-159788-L	2.8 cu-in Shaft, 1.9 cu-in Cover	14 gpm Shaft, 9 gpm Cover	Counterclockwise
02-159820	2 cu-in Shaft, 3.4 cu-in Cover	10 gpm Shaft, 17 gpm Cover	Clockwise, Counter Clockwise
02-159940-7	2.8 cu-in Shaft, 2.8 cu-in Cover	14 gpm Shaft, 14 gpm Cover	Clockwise, Counter Clockwise
02-306371	2 cu-in Shaft, 3.4 cu-in Cover	10 gpm Shaft, 17 gpm Cover	Clockwise, Counter Clockwise
02-314873	2 cu-in Shaft, 4.1 cu-in Cover	10 gpm Shaft, 21 gpm Cover	Counterclockwise
02-315001	2 cu-in Shaft, 4.1 cu-in Cover	10 gpm Shaft, 21 gpm Cover	Clockwise, Counter Clockwise
02-322306	2 cu-in Shaft, 3.4 cu-in Cover	10 gpm Shaft, 17 gpm Cover	Clockwise
02-328495	2 cu-in Shaft, 3.4 cu-in Cover	10 gpm Shaft, 17 gpm Cover	Clockwise
02-334140	2 cu-in Shaft, 4.1 cu-in Cover	10 gpm Shaft, 21 gpm Cover	Clockwise
02-335419	2 cu-in Shaft, 2.5 cu-in Cover	10 gpm Shaft, 12 gpm Cover	Clockwise, Counter Clockwise
02-345148	2 cu-in Shaft, 3.4 cu-in Cover	10 gpm Shaft, 17 gpm Cover	Counterclockwise
02-345408	2 cu-in Shaft, 3.4 cu-in Cover	10 gpm Shaft, 17 gpm Cover	Clockwise, Counter Clockwise
02-348965	2 cu-in Shaft, 3.4 cu-in Cover	10 gpm Shaft, 17 gpm Cover	Clockwise
02-465602	2 cu-in Shaft, 3.4 cu-in Cover	10 gpm Shaft, 17 gpm Cover	Counterclockwise
02-465644-S	2.5 cu-in Shaft, 1.7 cu-in Cover	12 gpm Shaft, 8 gpm Cover	Counterclockwise
02-465668-H	2.5 cu-in Shaft, 2.2 cu-in Cover	12 gpm Shaft, 11 gpm Cover	Clockwise
02-465679-H	2.5 cu-in Shaft, 2.2 cu-in Cover	12 gpm Shaft, 11 gpm Cover	Clockwise
02-466232-P	2 cu-in Shaft, 1.7 cu-in Cover	10 gpm Shaft, 8 gpm Cover	Clockwise, Counter Clockwise
02-466318-X	3.4 cu-in Shaft, 1.7 cu-in Cover	17 gpm Shaft, 8 gpm Cover	Counterclockwise
02-466901	2 cu-in Shaft, 2.8 cu-in Cover	10 gpm Shaft, 14 gpm Cover	Counterclockwise

Product Questions & Answers (1)

Question by: Dwight R on Dec 19, 2025, 8:33 AM

pump's made of cast iron, right? wondering if that holds up alright in a high-pressure setup running power steering on a small press unit

Answer by: Customer Support on Dec 20, 2025, 4:17 PM

Cast iron construction handles high-pressure, high-speed conditions well, which is exactly what this pump is built around. Power steering systems and small press units are right in its wheelhouse, so you're not pushing it outside its intended use. The Buna-N seals also hold up reliably in those kinds of hydraulic environments, contributing to a longer service life overall.
