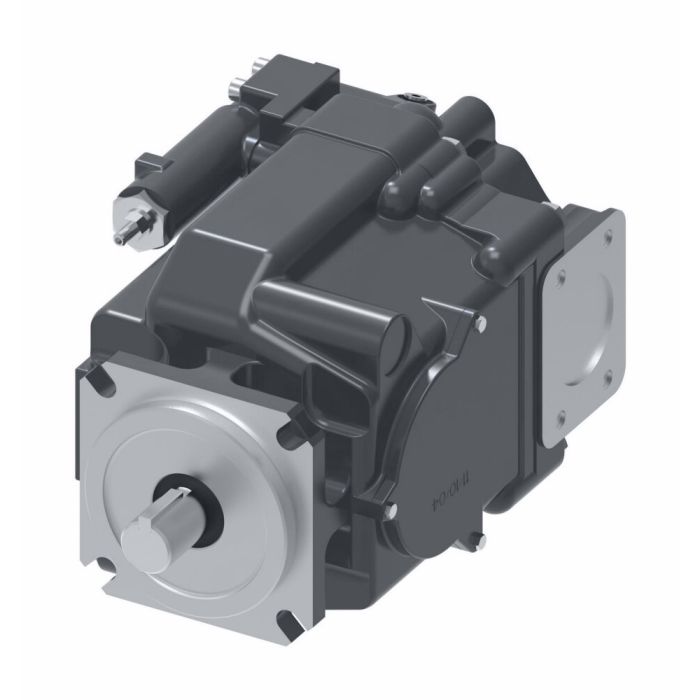

Vickers PVQ20B2LSE1S21C2112 Piston Pump

Description & Features

The Vickers PVQ20B2LSE1S21C2112 piston pump is part of the Vickers by Danfoss / Eaton PVQ series of open circuit piston pumps. This industrial OC piston pump is well-suited for demanding applications in mining machinery, injection molding machines, metal forming machines, and metal cutting equipment.

This Vickers PVQ20B2LSE1S21C2112 Piston Pump offers reduced operating noise and longer life, even at lower operating pressures. It is also designed for use in oil and gas equipment, primary metals processing, and conveyor lines.

SKU: 02-341550

Supplier Part Number (MPN): 02-341550

Specifications

Brand Vickers by Danfoss	Control Design C14, C21, CM7, C-D and CM-D	Control Type Pressure Compensator	Dimensions 12.63 in L x 7.82 in W x 12.5 in H	Drive Shaft Type Straight Keyed	Housing Material Iron	Inlet Type SAE	Maximum Operating Pressure 3000 psi	Model PVQ20	Mounting Type 2-Bolt Flanged	nmfc 125820	Outlet Type SAE	Rotation Direction Counter Clockwise (Left Hand)	Rotation (Viewed From S End) Counterclockwise (Left-Hand)	Seal Material Buna-N	Series PVQ Series

Similar Products

Model Number	Drive Shaft Type	Rotation Direction
02-341536	Straight Keyed	Clockwise (Right Hand)
02-341539	Straight Keyed	Clockwise (Right Hand)
02-341540	Straight Keyed	Clockwise (Right Hand)
02-341547	Straight Keyed	Counter Clockwise (Left Hand)
02-341551	Straight Keyed	Clockwise (Right Hand)
02-341553	Straight Keyed	Clockwise (Right Hand)
02-341556	Straight Keyed	Clockwise (Right Hand)
02-341558	13 Teeth Splined	Clockwise (Right Hand)
02-341560	Straight Keyed	Clockwise (Right Hand)
02-341561	Straight Keyed	Clockwise (Right Hand)
02-341563	16 Teeth Splined	Clockwise (Right Hand)
02-341564	16 Teeth Splined	Clockwise (Right Hand)
02-341568	Straight Keyed	Clockwise (Right Hand)
02-347978	Straight Keyed	Clockwise (Right Hand)
02-348444	Straight Keyed	Clockwise (Right Hand)
02-348581	Straight Keyed	Clockwise (Right Hand)
02-348599	Straight Keyed	Clockwise (Right Hand)
02-348681	13 Teeth Splined	Clockwise (Right Hand)
02-348703	Straight Keyed	Clockwise (Right Hand)
02-348722	13 Teeth Splined	Clockwise (Right Hand)
02-348839	Straight Keyed	Clockwise (Right Hand)
02-348887	Straight Keyed	Clockwise (Right Hand)
02-466033	13 Teeth Splined	Clockwise (Right Hand)
02-466104	26 Teeth Splined	Clockwise (Right Hand)
02-466277	Straight Keyed	Clockwise (Right Hand)
02-466308	Straight Keyed	Clockwise (Right Hand)
02-466458	13 Teeth Splined	Clockwise (Right Hand)
02-466511	13 Teeth Splined	Clockwise (Right Hand)
02-466563	Straight Keyed	Clockwise (Right Hand)
02-466564	Straight Keyed	Clockwise (Right Hand)
02-466568	Straight Keyed	Counter Clockwise (Left Hand)
02-466596	Straight Keyed	Clockwise (Right Hand)
02-466704	Straight Keyed	Clockwise (Right Hand)
02-466911	13 Teeth Splined	Clockwise (Right Hand)

Product Questions & Answers (2)

Question by: Eddie M on May 25, 2025, 6:18 AM

What kinda machines will this pump work on?

Answer by: Customer Support on May 26, 2025, 5:41 PM

It's well-suited for machinery used in mining, injection molding, metal forming, and metal cutting. It can also work with oil and gas equipment, primary metals processing, and conveyor lines.

Question by: Glen H on Sep 8, 2025, 3:08 PM

been looking at this pump for a conveyor line setup we got running pretty much all day, does it hold up to that kind of continuous industrial use or is it more of a light duty unit

Answer by: Customer Support on Sep 10, 2025, 9:15 AM

Built for exactly that kind of environment. The PVQ series is rated for demanding industrial applications, conveyor lines specifically being one of the listed use cases. Longer service life is one of the core design priorities of this pump, so sustained operation in a production setting is well within what it was put together to handle.
