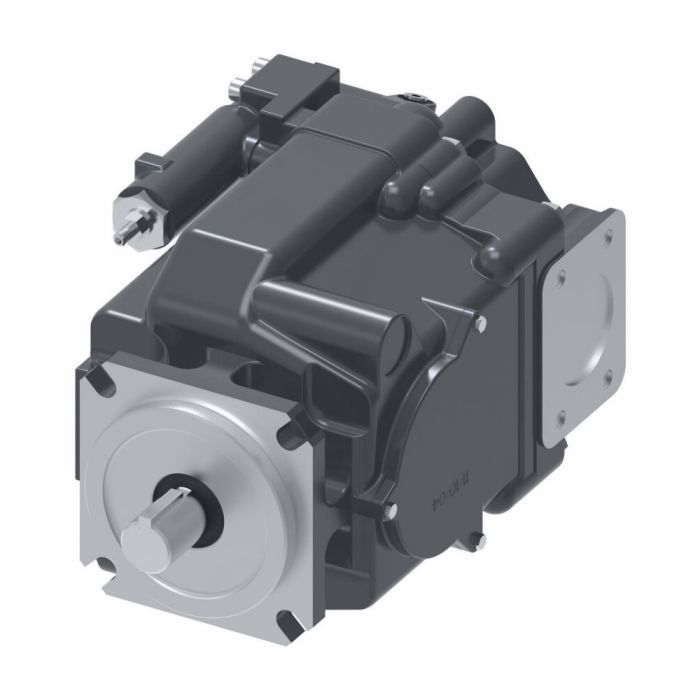

VICKERS PVQ10 A2R SE1S 20 C21 D 12

Description & Features

Designed for demanding industrial environments, the Vickers PVQ10 A2R SE1S 20 C21 D 12 is an open circuit piston pump from the Vickers by Danfoss/Eaton PVQ Series, sized at frame size 10. It is well suited for use in metal cutting equipment, metal forming machines, injection molding machines, conveyor lines, mining machinery, oil and gas equipment, and primary metals applications.

Key design characteristics include reduced operating noise, longer service life, and lower operating pressure compared to conventional piston pump configurations. These traits make this pump a practical choice where consistent hydraulic flow and durability under load cycling are required.

Alternate part numbers for cross-reference: C1EL39, PVQ10A2RSE1S20C21D12.

SKU: 02-341577

Supplier Part Number (MPN): 02-341577

Alternate Part Numbers: C1EL39, PVQ10A2RSE1S20C21D12

Specifications

Brand Vickers by Danfoss	Control Option Adjustable Maximum Displacement Stop (Optional)	Control Type Pressure Compensator	Dimensions 8.72 in L x 8.92 in W x 5.18 in H	Drive Shaft Type Straight Keyed	Housing Material Iron	Inlet Type SAE J744-82-2	Maximum Operating Pressure 3000 psi	Model PVQ10	Mounting Type Flanged	nmfc 125820	Outlet Type SAE J744-82-2	Ports Type and Location SAE O-ring Rear Port, 1-1/16 in Inlet	Pump Design Number 20	Rotation Direction Clockwise (Right Hand)	Seal Material Buna-N	Segment Code B	Series PVQ Series

Similar Products

Model Number	Rotation Direction	Price	Action
02-341588	Clockwise (Right Hand)
02-341589	Clockwise (Right Hand)
02-341590	Clockwise (Right Hand)
02-341614	Counter Clockwise (Left Hand)
02-341615	Counter Clockwise (Left Hand)
02-341619	Counter Clockwise (Left Hand)

Product Questions & Answers (1)

Question by: Patty A on May 5, 2025, 2:45 PM

Got a metal forming setup that's been chewing through pumps faster than we'd like. Would this PVQ10 hold up better over time than what we been running?

Answer by: Customer Support on May 7, 2025, 6:13 AM

Longer service life is one of the defining traits of the PVQ Series, and that holds especially true in load-cycling applications like metal forming. The design specifically addresses the wear patterns that tend to shorten pump life in demanding duty, so if premature failure has been a recurring headache, this is a reasonable upgrade path. Metal forming is also one of the listed application types for this pump, so you're not stretching its intended use.
