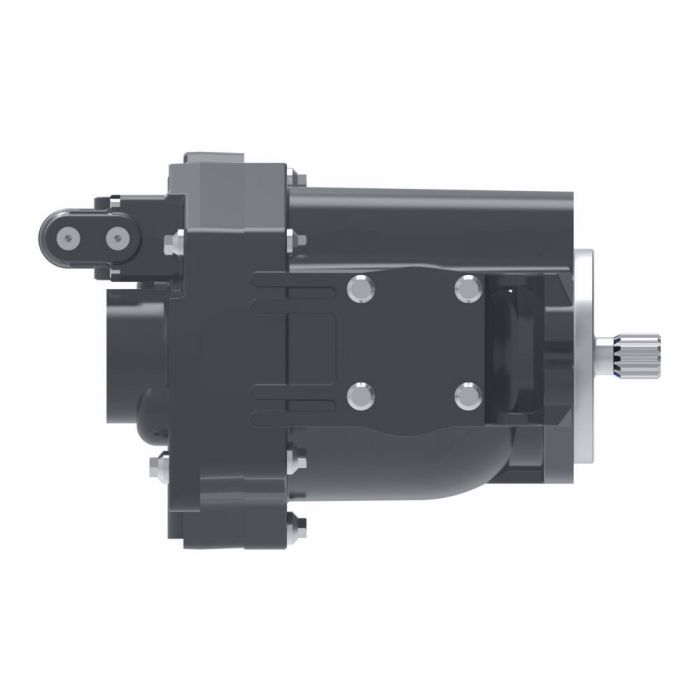

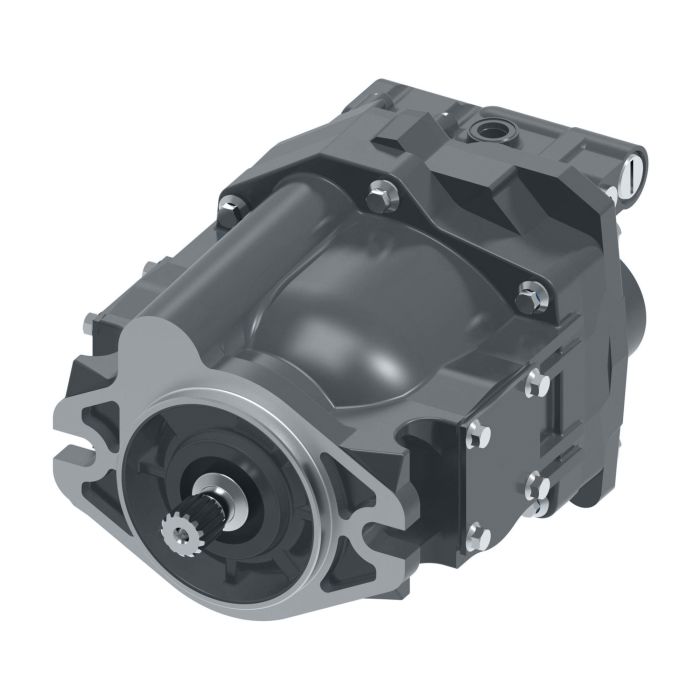

VICKERS PVQ10-A2L-SE3S-20-C21-12

Ask A Question

Description & Features

Designed for demanding industrial environments, the VICKERS PVQ10-A2L-SE3S-20-C21-12 piston pump from the Vickers PVQ Series ensures reliable performance in mining machinery, injection molding machines, and oil and gas equipment. This open circuit piston pump is engineered to minimize noise levels, enhancing operational efficiency while contributing to a quieter work environment. Its robust construction and lower operating pressure extend the lifespan of equipment, making it an ideal choice for metal forming machines, conveyor lines, and primary metals applications.

With a product width of 8.92 inches, this pump is designed for seamless integration into existing systems. The Vickers PVQ10-A2L-SE3S-20-C21-12 exemplifies quality and durability, supported by its longstanding reputation in industrial settings. Perfectly suited for metal cutting equipment, this pump combines advanced engineering with practical functionality to meet the needs of diverse industrial applications.

SKU: 02-341620

Supplier Part Number (MPN): 02-341620

Specifications

Brand
Vickers by Danfoss
Control Design
O-ring Seal Design
Control Type
Pressure Compensator
Dimensions
8.72 in L x 8.92 in W x 5.18 in H
Drive Shaft Type
9 Teeth Splined
Housing Material
Iron
Inlet Type
SAE J744-82-2
Maximum Operating Pressure
3000 psi
Model
PVQ10
Mounting Type
Flanged
Outlet Type
SAE J744-82-2
Ports Type and Location
SAE O-ring Rear Port, 1-1/16 in Inlet
Rotation Direction
Counter Clockwise (Left Hand)
Rotation (Viewing Shaft End)
Counterclockwise (Left-Hand), Optional
Seal Material
Buna-N
Series
PVQ Series
Shaft Pitch
16/32

Product Questions & Answers (1)

Question by: Lynn W on Jan 25, 2026, 5:34 PM
pump's got a pretty wide footprint, does the 8.92 inch width cause any real headache fitting it into a tight machine frame, or is that pretty standard for this size class?
Answer by: Customer Support on Jan 27, 2026, 6:04 AM
For a Size 10 piston pump in this series, that 8.92 inch width is right in the expected range. Most machine frames built around comparable open circuit piston pumps account for that kind of envelope. That said, if you're dropping it into a retrofit situation rather than a fresh build, it's worth measuring your bay clearance before ordering. The pump itself is built for seamless integration into existing systems, so as long as your mounting geometry lines up, the width alone shouldn't be the sticking point.
