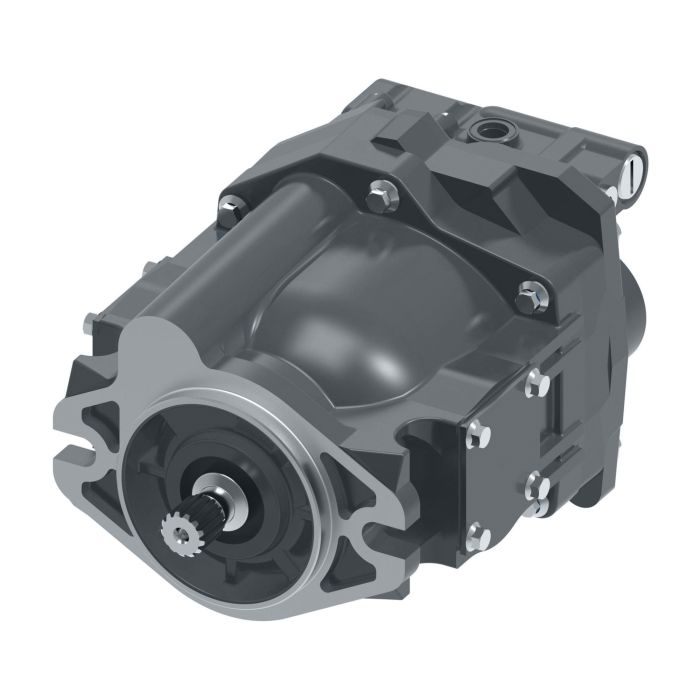

VICKERS PVQ40AR01AB10G2100000200100CD0A

Ask A Question

Description & Features

Designed for demanding industrial environments, the Vickers PVQ40AR01AB10G2100000200100CD0A is an open circuit piston pump from the Vickers by Danfoss/Eaton PVQ Series. Built to perform in applications such as metal forming, metal cutting, injection molding, conveyor lines, oil and gas equipment, and mining machinery, this pump is a well-suited choice across a broad range of industrial sectors including primary metals.

Key engineering characteristics include reduced operating noise, longer service life, and lower operating pressure compared to conventional piston pump designs. These attributes make the PVQ Series a practical selection where noise control and component longevity are priorities in high-cycle industrial settings.

No special features beyond standard configuration are noted for this unit. The alternate part number for cross-reference is C1JV43.

SKU: 02-341948

Supplier Part Number (MPN): 02-341948

Alternate Part Numbers: C1JV43

Specifications

Brand
Vickers by Danfoss
Control Type
Pressure Compensator
Controller Type
Adjustable Pressure Compensator
Design Code
A
Dimensions
10.47 in L x 7.77 in W x 7.14 in H
Drive Shaft Type
Straight Keyed
Front Mounting and Input Shaft
2-Bolt B (SAE J744-101-2) with 22.2 mm [0.88 in] Dia Straight Key Shaft (SAE J744-22-1) (Key Included)
Housing Material
Iron
Main Port Location and Size
End Ports Suction - 1-7/8-12 Un-2B SAE O-ring Port Pressure - 1-5/16-12 Un-2B SAE O-ring Port
Maximum Operating Pressure
3000 psi
Model
PVQ40
Mounting Type
Flanged
nmfc
125820
Pr Comp Unloading Valve Stg
203.4 to 210.3 Bar [2950 to 3050 lbf/sq-in]
Pump Design Number
20
Rotation Direction
Clockwise (Right Hand)
Seal Material
Fluorocarbon
Segment Code
A
Series
PVQ Series

Product Questions & Answers (2)

Question by: Frank R on May 5, 2025, 3:55 PM
we run a metal forming line and noise is a real concern on the floor, heard the PVQ series runs quieter than most piston pumps, that accurate?
Answer by: Customer Support on May 6, 2025, 3:56 PM
Reduced operating noise is one of the core traits of the PVQ series, so yes, that reputation holds up. Compared to conventional piston pump designs, this series runs at lower operating pressure and is built to be noticeably quieter in operation. For a metal forming environment where you've got people working nearby and long shift cycles, that's a meaningful difference over time.
Question by: Hubert W on Dec 11, 2025, 8:07 PM
Reckon this would be alright for some metal forming work?
Answer by: Customer Support on Dec 13, 2025, 6:14 AM
Use-case-first: Specifically designed for demanding industrial environments, the Vickers PVQ40AR01AB10G2100000200100CD0A is well-suited for metal forming applications, along with metal cutting and injection molding tasks.
