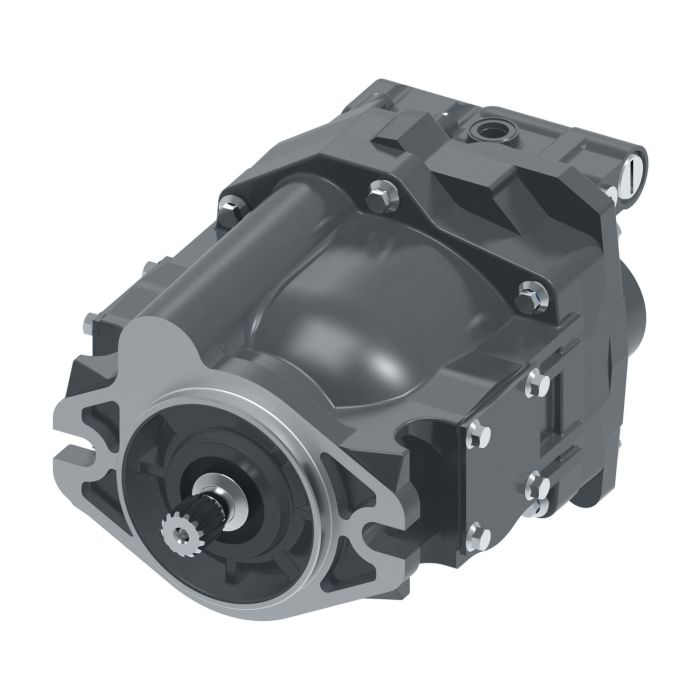

main product photo

VICKERS PVQ40AR01AB10G2100000100100CD0A

Ask A Question

Description & Features

The Vickers PVQ40AR01AB10G2100000100100CD0A open circuit piston pump is part of the PVQ series from Eaton Vickers. Well-suited for demanding applications, this pump excels in mining machinery, injection molding machines, and metal forming machines.

Designed for durability and performance, this Vickers pump is also ideal for use in oil and gas equipment, conveyor lines, primary metals processing, and metal cutting equipment. Features include reduced operating noise, contributing to a more comfortable working environment, and a design promoting longer life and lower operating pressure.

SKU: 02-341949

Supplier Part Number (MPN): 02-341949

Alternate Part Numbers: PVQ40AR01AB10G2100000100100CD0A

Specifications

Brand
Vickers by Danfoss
Control Type
Pressure Compensator
Controller Type
Adjustable Pressure Compensator
Design Code
A
Dimensions
10.47 in L x 7.77 in W x 7.14 in H
Drive Shaft Type
Straight Keyed
Front Mounting and Input Shaft
2-Bolt B (SAE J744-101-2) with 22.2 mm [0.88 in] Dia Straight Key Shaft (SAE J744-22-1) (Key Included)
Housing Material
Iron
Main Port Location and Size
End Ports Suction - 1-7/8-12 Un-2B SAE O-ring Port Pressure - 1-5/16-12 Un-2B SAE O-ring Port
Maximum Operating Pressure
3000 psi
Model
PVQ40
Mounting Type
Flanged
nmfc
125820
Pr Comp Unloading Valve Stg
203.4 to 210.3 Bar [2950 to 3050 lbf/sq-in]
Pump Design Number
20
Rotation Direction
Clockwise (Right Hand)
Seal Material
Fluorocarbon
Segment Code
B
Series
PVQ Series

Product Questions & Answers (3)

Question by: Kurt B on Aug 31, 2025, 1:45 PM
got a PVQ series open circuit piston pump on a mining rig. is this VICKERS PVQ40AR01AB10G2100000100100CD0A the right kind of pump for that sort of work?
Answer by: Customer Support on Sep 2, 2025, 6:46 AM
Built for industrial open circuit hydraulic systems, the Vickers PVQ Series pump is commonly applied on mining machinery, along with other heavy equipment segments like oil and gas equipment and conveyor lines.
Question by: Rhonda G on Sep 2, 2025, 5:47 PM
Is this pump okay to run on injection molding machines?
Answer by: Customer Support on Sep 4, 2025, 4:11 PM
Yes, this Vickers PVQ series pump is listed as being suitable for injection molding machines, among other applications.
Question by: Hank H on Oct 10, 2025, 7:56 PM
What kind of machines is this pump actually built for? Got a metal forming line and trying to figure out if it fits the bill.
Answer by: Customer Support on Oct 12, 2025, 8:55 AM
Metal forming is one of the listed applications for this pump, along with injection molding, mining machinery, conveyor lines, metal cutting equipment, oil and gas equipment, and primary metals work. So for a metal forming line, you're in the right territory. It's an open circuit piston pump from the Vickers PVQ series, built for industrial use where you need reliable hydraulic output across demanding cycles.
