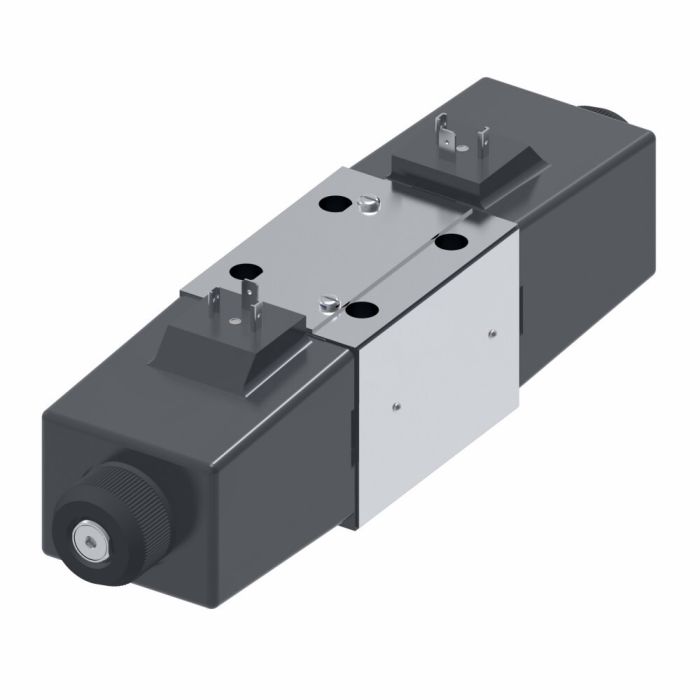

VICKERS DG4V4-012C-M-U-D-5-10

Ask A Question

Description & Features

The Eaton Vickers DG4V4-012C-M-U-D-5-10 directional control valve is suitable for applications such as die casting and foundry, machine tool, marine/offshore, press, primary metal, and paper. It's also appropriate for test equipment and simulation, and turbine control (wind, steam, and water).

This Vickers valve features three- or four-way directional control and is easily mounted on industry-standard surfaces. With a flow rate of 115 liters per minute and a seal material of Buna-N, it's a versatile solution for many applications. The product width is 2.84 inches and requires 30 watts.

SKU: 02-342168

Supplier Part Number (MPN): 02-342168

Specifications

Brand
Vickers by Danfoss
Actuator Type
Solenoid
Design
10 Series
Dimensions
9.38 in L x 2.84 in W x 4.31 in H
Domestic/Import
Domestic
Indicator Light
Without Indicator Light
Manual Override
Plain
Media
Petroleum Oil
Number of Stages
1
Performance
Standard
Seal Material
Buna-N
Segment Code
C
Series
DG4V4-01 10 Series
Spool Position Monitor
Without Spool Position Monitor
Spool Type
Spool 2
Spring Arrangement
Spring Centered
Surge Suppressor Damper
Without Surge Suppressor Damper
Valve Mount Type
Subplate/Manifold

Similar Products

Model Number Dimensions Price Action
VICKERS DG4V4016CMUD510

02-337986

9.38 in L x 2.84 in W x 4.31 in H

VICKERS DG4V4-012A-M-U-D-5-10

02-342377

6.88 in L x 2.84 in W x 4.31 in H

VICKERS DG4V4010CMUD510

02-391790

9.38 in L x 2.84 in W x 4.31 in H

VICKERS DG4V4012NMUD510

02-397789

9.38 in L x 2.84 in W x 4.31 in H

Product Questions & Answers (2)

Question by: Kirk P on Oct 3, 2025, 1:04 PM
got a unit that calls for a DG4V4-01, is this DG4V4-012C-M-U-D-5-10 the same family or am i fixin to order the wrong thing
Answer by: Customer Support on Oct 4, 2025, 3:55 PM
Within Eaton Vickers, DG4V4-01 identifies the DG4V4-01 10 design single stage directional control valve family, and DG4V4-012C-M-U-D-5-10 is a specific model in that group. It is built for three or four way directional control and is meant to mount on industry standard surfaces.
Question by: Daryl J on Jul 16, 2025, 1:45 PM
flow rate on this unit is 115 lpm, that right? trying to see if it'll keep up with what we're running on our press line
Answer by: Customer Support on Jul 18, 2025, 1:08 PM
Yes, 115 litres per minute is the rated flow for this valve. For press applications specifically, that's one of the listed use cases, so it's well within what this valve was built to handle on that kind of equipment.
