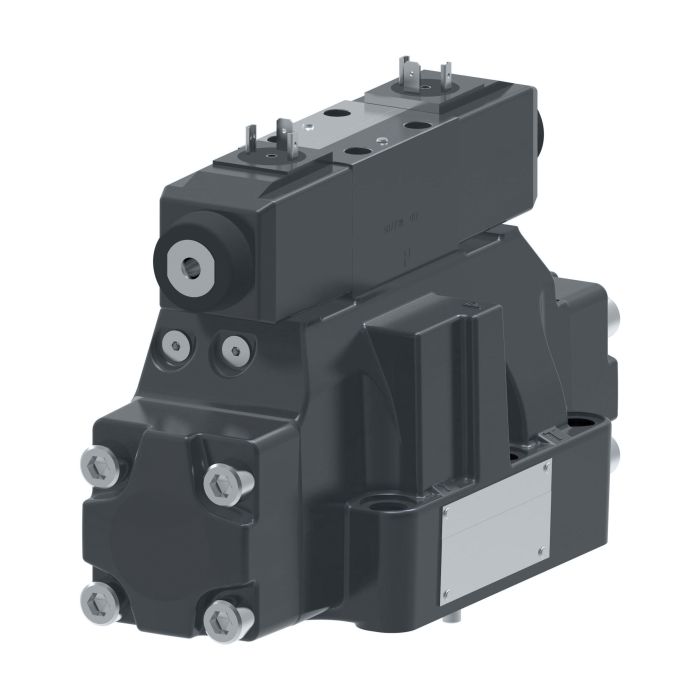

Vickers DG5V 8 H 8C E V M U H 10

Ask A Question

Description & Features

Capable of handling flow rates up to 700 litres per minute, the Vickers DG5V 8 H 8C E V M U H 10 is a two-stage directional control valve designed for demanding industrial hydraulic circuits. It supports three- or four-way directional control configurations and mounts on industry-standard surfaces, simplifying integration into existing hydraulic systems.

Buna-N seals provide reliable fluid compatibility across a wide range of hydraulic media, and the 30-watt solenoid rating suits standard industrial power supplies. Intended applications span die casting and foundry equipment, machine tools, marine and offshore installations, press systems, primary metal and paper processing, test and simulation equipment, and turbine control for wind, steam, and water installations.

SKU: 02-342517

Supplier Part Number (MPN): 02-342517

Specifications

Brand
Vickers by Danfoss
Actuator Type
Solenoid, Pilot Operated
Design
10 Series
Dimensions
10.45 in L x 4.67 in W x 7.79 in H
Domestic/Import
Domestic
Ext Pilot Pressure
External
Gauge Port Thread
7/16-20 UNF, SAE Thread
Indicator Light
Without Indicator Light
Int Pilot Drain
External
Manual Override
Plain
Media
Petroleum Oil
Number of Stages
2
Performance
High
Seal Material
Buna-N
Segment Code
C
Series
DG5V-8 10 Series
Solenoid Energizing ID
Solenoid A at Port A/Solenoid B at Port B
Spool Position Monitor
Without Spool Position Monitor
Spool Type
Spool 8
Spring Arrangement
Spring Centered
Surge Suppressor Damper
Without Surge Suppressor Damper
Valve Mount Type
Subplate/Manifold

Product Questions & Answers (2)

Question by: Cindy H on Dec 30, 2025, 8:07 PM
Reckon this'll work good on a die casting setup?
Answer by: Customer Support on Jan 1, 2026, 7:30 AM
It is designed for use in die casting and foundry equipment, along with machine tools, marine/offshore applications, press systems, primary metal and paper processing, test equipment and simulation, and turbine control for wind, steam, and water installations.
Question by: Keith J on Jun 6, 2025, 9:42 PM
need a directional valve that can move a lot of oil, is this one really good for high flow setups?
Answer by: Customer Support on Jun 8, 2025, 11:51 AM
For high-flow circuits, this model is rated up to 700 litres per minute, so it fits applications where you need a two-stage directional control valve that can handle big volume.
