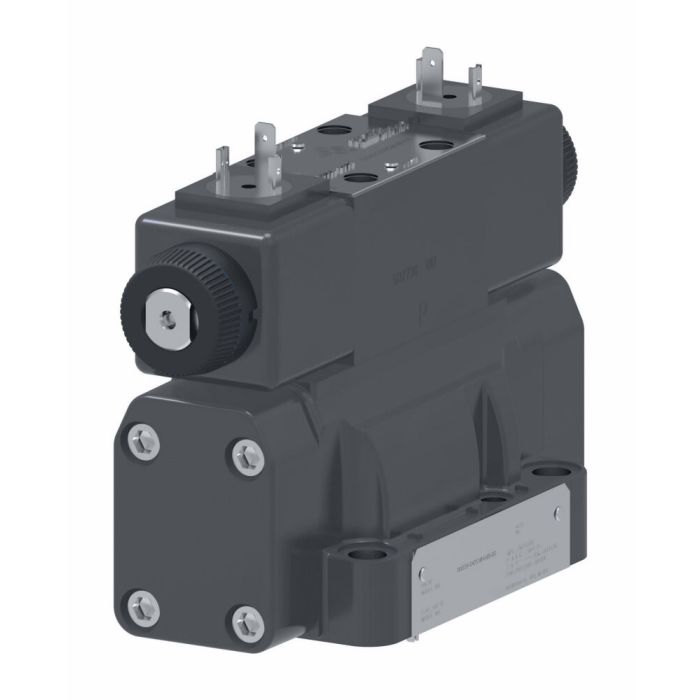

main product photo

Vickers DG5S4 022C E M U B5 20

Ask A Question

Description & Features

Designed for demanding industrial environments, the Vickers DG5S4 022C E M U B5 20 is a two-stage directional control valve capable of handling flow rates up to 115 litres per minute. It supports three- or four-way directional control configurations and mounts directly to industry-standard surfaces, making integration into existing hydraulic circuits straightforward.

Rated at 30 watts and sealed with Buna-N for reliable fluid compatibility, this valve suits a wide range of heavy-duty applications including machine tools, presses, die casting and foundry equipment, primary metal processing, marine and offshore systems, turbine control, and test and simulation equipment. The breadth of compatible applications reflects the flexibility built into the DG5S4 design series, with thousands of model configurations available to meet varied system requirements.

SKU: 02-344700

Supplier Part Number (MPN): 02-344700

Specifications

Brand
Vickers by Danfoss
Actuator Type
Solenoid, Pilot Operated
Design
20 Series
Dimensions
7.87 in L x 2.63 in W x 6.17 in H
Domestic/Import
Domestic
Ext Pilot Pressure
External
Indicator Light
Without Indicator Light
Int Pilot Drain
External
Manual Override
Plain
Media
Petroleum Oil
Number of Stages
2
Seal Material
Buna-N
Series
DG5S4-02 20 Series
Spool Type
Spool 2
Spring Arrangement
Spring Centered
Valve Mount Type
Subplate/Manifold

Product Questions & Answers (2)

Question by: Jerry S on Nov 22, 2025, 8:09 AM
Will this here valve fit right onto a standard hydraulic setup?
Answer by: Customer Support on Nov 23, 2025, 1:50 PM
This Vickers valve mounts directly to industry-standard surfaces, making it pretty easy to integrate into existing hydraulic systems without a whole lot of fuss.
Question by: Shawn M on May 31, 2025, 9:53 PM
flow rate on this valve is listed at 115 litres per minute -- is that enough for running a press or die casting setup, or would it be cutting it close?
Answer by: Customer Support on Jun 2, 2025, 8:07 AM
For most press and die casting applications, 115 litres per minute is a solid working capacity. Both of those are listed application types for this valve, so it was built with those demands in mind. Whether it fits your specific circuit depends on what your system actually pulls, but the flow rating gives you plenty of headroom for typical setups in those industries.
