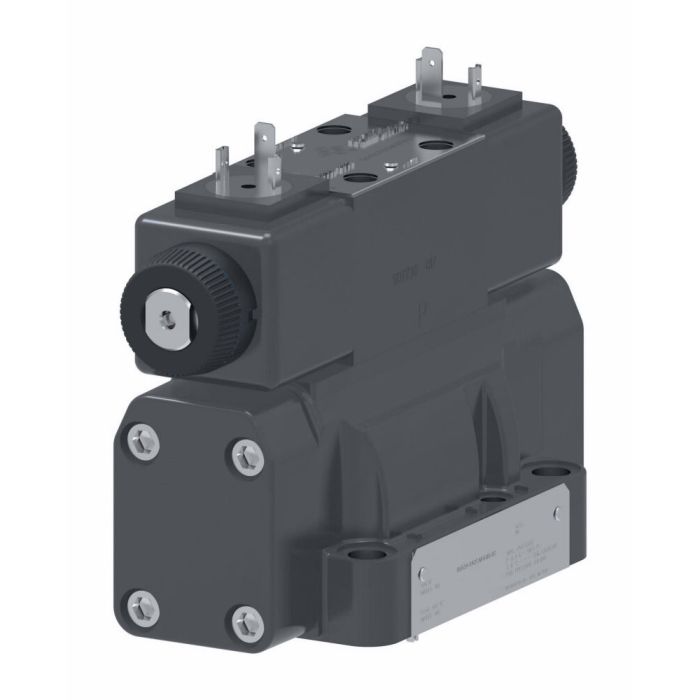

Vickers DG5S4 026C M U H7 30

Ask A Question

Description & Features

The Vickers DG5S4 026C M U H7 30 is designed for versatile applications, including die casting, machine tools, marine, and turbine control systems. This directional control valve is engineered for precision and reliability, offering three- or four-way directional control. It supports a flow rate of up to 115 liters per minute, making it suitable for demanding industrial environments.

Constructed to mount easily on industry-standard surfaces, this valve is compatible with a wide range of systems. The durable Buna-N seal material ensures longevity and robust performance under various conditions. With thousands of models available, the Vickers DG5S4 series can meet diverse application needs across sectors such as primary metal and test equipment.

SKU: 02-344710

Supplier Part Number (MPN): 02-344710

Specifications

Brand
Vickers by Danfoss
Actuator Type
Solenoid, Pilot Operated
Design
30 Series
Dimensions
7.87 in L x 2.63 in W x 6.17 in H
Domestic/Import
Domestic
Ext Pilot Pressure
Internal
Indicator Light
Without Indicator Light
Int Pilot Drain
External
Manual Override
Plain
Media
Petroleum Oil
Number of Stages
2
Performance
High
Seal Material
Buna-N
Series
DG5S4-02 30 Series
Spool Position Monitor
Without Spool Position Monitor
Spool Type
Spool 6
Spring Arrangement
Spring Centered
Surge Suppressor Damper
Without Surge Suppressor Damper
Valve Mount Type
Subplate/Manifold

Product Questions & Answers (2)

Question by: Sheila W on Sep 23, 2025, 3:49 PM
How about using this in a marine hydraulic system, any reason it wouldn't be suitable?
Answer by: Customer Support on Sep 25, 2025, 1:29 PM
Designed for marine and offshore applications, this Vickers valve should be a good fit for your hydraulic system assuming the flow rate and other specs align with your needs.
Question by: Jean J on Sep 18, 2025, 5:45 PM
flow rate on this unit is listed at 115 liters per minute -- is that enough for press and die casting work or is it cutting it close for those applications?
Answer by: Customer Support on Sep 20, 2025, 6:43 AM
For die casting and press applications, 115 liters per minute is a solid working capacity. Both of those environments show up as supported applications for this valve, so it's built with those flow demands in mind. Whether it's enough for your specific setup comes down to your system's actual flow requirements, but the rating puts it well within range for most industrial press and die casting circuits.
