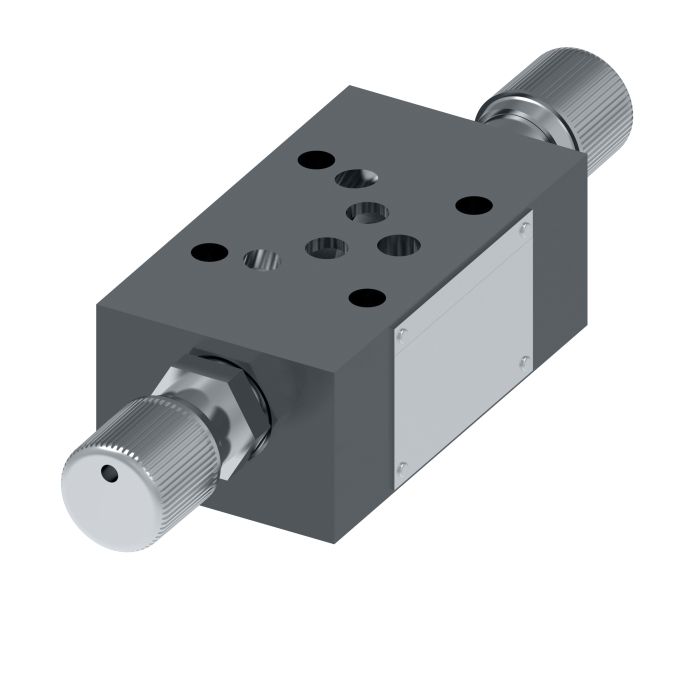

VICKERS-DGMC2 5 AT FH BT FH B 30

Description & Features

Designed for demanding industrial hydraulic circuits, the VICKERS-DGMC2 5 AT FH BT FH B 30 is a SystemStak directional control valve from the Vickers line by Danfoss/Eaton. Built around a modular stack configuration, it supports flow rates up to 120 litres per minute and uses Buna-N seals suited to a broad range of hydraulic fluids.

The modular SystemStak design reduces installation costs by eliminating much of the external porting and hardware associated with individually mounted valves, while also minimising external leakage points and boosting resistance to contamination. At 2.82 inches wide, it fits within compact manifold assemblies without sacrificing flow capacity. Suitable for a wide range of demanding environments, this valve sees use in machine tool, press, primary metal, die casting and foundry, marine/offshore, turbine control, and test and simulation applications.

SKU: 02-344719

Supplier Part Number (MPN): 02-344719

Specifications

Brand Vickers by Danfoss	Actuator Type Pressure Operated	Adjustment Type Knob	Body Material Iron	Design 30 Series	Dimensions 10.54 in L x 2.82 in W x 1.97 in H	Domestic/Import Domestic	External Drain Without External Drain	Function 1 Pressure Adjustment 60 to 2900 psi	Function 2 Pressure Adjustment 60 to 2900 psi	Gauge Port Thread G1/8 BSPF	Media Petroleum Oil	Nominal Size #5	Number of Stages 2	P Port Acted Upon B Cylinder Port	Performance Standard	Port Drained Into T Port	Port Drained Into Dual T Port	Port Operated Upon A Cylinder Port	Remote Control Port Without Remote Control Port	Seal Material FKM	Series DGMC-2 Series	Valve Mount Type Subplate/Manifold

Product Questions & Answers (1)

Question by: Wayne C on Jan 7, 2026, 7:58 AM

flow rate on this thing goes up to 120 LPM -- that hold up in a press application or is that more of a ceiling you rarely hit in real use?

Answer by: Customer Support on Jan 9, 2026, 8:42 AM

For press applications, 120 litres per minute is a legitimate working capacity, not just a nameplate number. Press circuits often see high-demand bursts, and this valve is specifically listed for press use alongside other heavy-duty environments like primary metal and die casting. The SystemStak modular design also helps keep flow paths clean and consistent, which matters when you're cycling hard. As long as your system is sized to stay at or under that 120 LPM mark, you're in the right range for the application.
