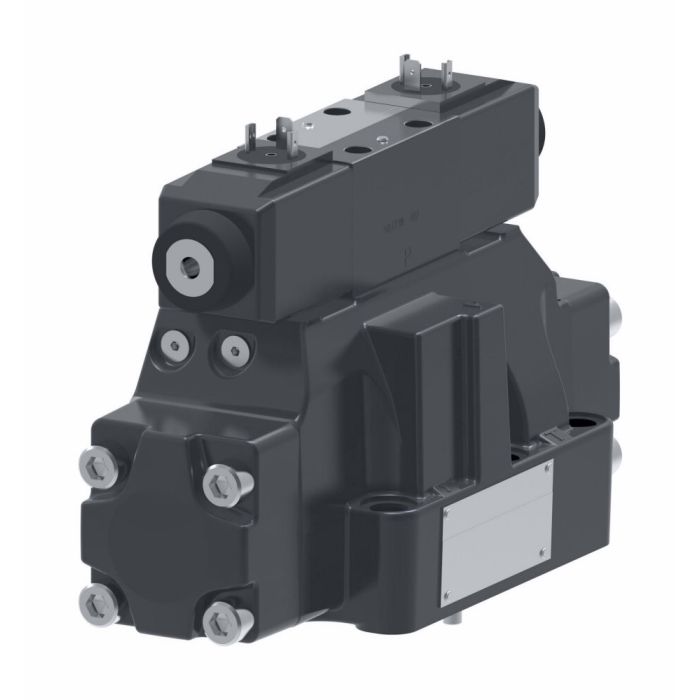

Danfoss / Eaton Vickers DG5V-8-H Series

Description & Features

Designed for high-flow industrial hydraulic circuits, the Danfoss / Eaton Vickers DG5V-8-H Series is a two-stage directional control valve capable of handling flow rates up to 700 litres per minute. Buna-N seals provide reliable fluid compatibility across a broad range of hydraulic media, and a 30-watt solenoid rating supports straightforward electrical integration.

Available in three- or four-way configurations, this valve mounts on industry-standard surfaces, simplifying installation in new and existing systems. The DG5V-8-H is suited to demanding environments including press applications, machine tool circuits, primary metal processing, die casting and foundry equipment, marine and offshore installations, turbine control, and test and simulation rigs.

With thousands of model variants in the DG5V-8 range, this series is well established across heavy industrial sectors where precise directional control and high flow capacity are required in a single valve package.

SKU: 02-344733

Supplier Part Number (MPN): 02-344733

Specifications

Brand
Vickers by Danfoss
Actuator Type
Solenoid, Pilot Operated
Design
10 Series
Dimensions
10.45 in L x 4.67 in W x 7.79 in H
Domestic/Import
Domestic
Ext Pilot Pressure
Internal
Gauge Port Thread
7/16-20 UNF, SAE Thread
Indicator Light
Without Indicator Light
Int Pilot Drain
External
Manual Override
Plain
Media
Petroleum Oil
Number of Stages
2
Performance
High
Seal Material
Buna-N
Segment Code
C
Series
DG5V-8 10 Series
Solenoid Energizing ID
Solenoid A at Port A/Solenoid B at Port B
Spool Position Monitor
Without Spool Position Monitor
Spool Type
Spool 8
Spring Arrangement
Spring Centered
Surge Suppressor Damper
Without Surge Suppressor Damper
Valve Mount Type
Subplate/Manifold

Similar Products

Model Number Dimensions Price Action
Vickers DG5V 8 H 8C E V M U H 10

02-342517

10.45 in L x 4.67 in W x 7.79 in H

VICKERS DG5V8H8CETVMUH10

02-357887

10.45 in L x 4.67 in W x 7.79 in H

VICKERS DG5V8H2CTVMUH10

02-394030

10.45 in L x 4.67 in W x 7.79 in H

VICKERS DG5V8H2CETVMUH10

02-394031

10.45 in L x 4.67 in W x 7.79 in H

VICKERS DG5V8HB35AZPPAEVMUH10EN600

02-397160

10.45 in L x 4.67 in W x 7.79 in H

VICKERS DG5V8H6CEVMUH10

02-398051

10.45 in L x 4.67 in W x 7.79 in H

VICKERS DG5V8H2CEVMUH10

02-398086

10.45 in L x 4.67 in W x 7.79 in H

VICKERS DG5V8H0C2SVMUH10

02-398499

10.45 in L x 4.67 in W x 9.36 in H

VICKERS DG5V8H0C2TSVMUH10

02-399060

10.45 in L x 4.67 in W x 9.36 in H

VICKERS DG5V8H2CVMUH10

02-399071

10.45 in L x 4.67 in W x 7.79 in H

VICKERS DG5V8H6CTVMUH10

02-399085

10.45 in L x 4.67 in W x 7.79 in H

VICKERS DG5V8H8CKVMUH10

02-399088

10.45 in L x 4.67 in W x 7.79 in H

VICKERS DG5V8H4CXEVMUH10EN557

02-400224

10.44 in L x 4.67 in W x 7.79 in H

VICKERS DG5V8H4CXQVMUH10EN559

02-400225

10.44 in L x 4.67 in W x 7.79 in H

VICKERS-DG5V-8-H-8C-VM-U-H-10-EN401

02-402581

10.44 in L x 4.67 in W x 7.79 in H

Product Questions & Answers (1)

Question by: Freddie H on Feb 12, 2026, 8:27 AM
Reckon this valve would be alright for a die casting machine?
Answer by: Customer Support on Feb 14, 2026, 6:55 AM
Application-wise, these Danfoss/Eaton Vickers DG5V-8-H series valves are indeed used in die casting and foundry settings, so it's certainly worth looking into.
