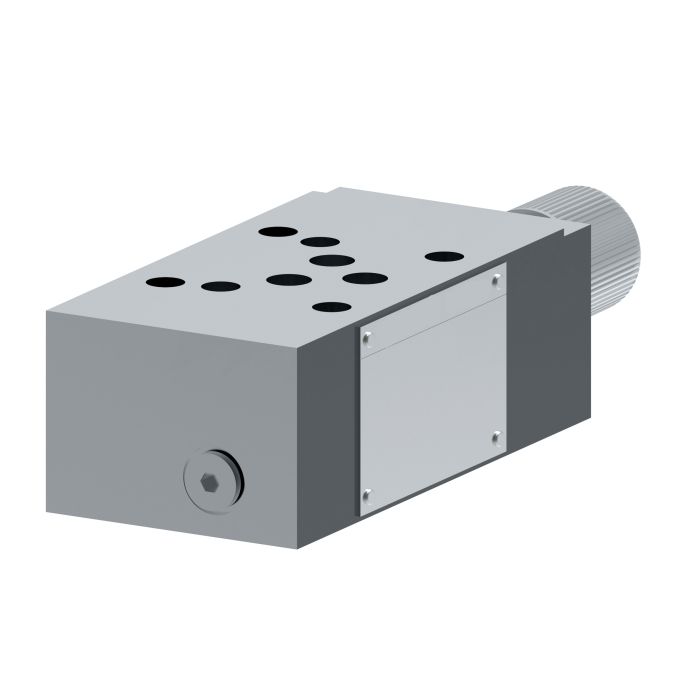

VICKERS-DGMC 5 AT FH B 30

Ask A Question

Description & Features

A directional control valve built for demanding industrial hydraulic circuits, the Vickers DGMC-5 AT FH B 30 is a SystemStak valve designed to reduce installation complexity by eliminating the need for external manifold connections. Rated for flow up to 120 litres per minute, it fits applications where reliable directional control is required at high cycle rates or under sustained load.

Buna-N seals provide resistance to common hydraulic fluids while supporting contamination resistance in harsh service environments. The SystemStak design eliminates external leakage paths between valve stations, making it well-suited for press, machine tool, primary metal, and die casting installations. It is also used in marine and offshore systems, turbine control circuits, and test equipment and simulation rigs where consistent valve performance is critical.

SKU: 02-344922

Supplier Part Number (MPN): 02-344922

Specifications

Brand
Vickers by Danfoss
Actuator Type
Pressure Operated
Adjustment Type
Knob
Body Material
Iron
Design
30 Series
Dimensions
7.9 in L x 2.82 in W x 1.97 in H
Domestic/Import
Domestic
External Drain
Without External Drain
Gauge Port Thread
G1/8 BSPF
Media
Petroleum Oil
Nominal Size
#5
Number of Stages
1
Remote Control Port
Without Remote Control Port
Seal Material
FKM
Series
DGMC Series
Valve Mount Type
Subplate/Manifold

Product Questions & Answers (1)

Question by: Rusty H on Jan 21, 2026, 11:33 AM
Reckon this'll fit in a die casting setup? We're pushing about 110 litres a minute through it.
Answer by: Customer Support on Jan 22, 2026, 4:18 PM
Application-wise, it’s definitely suited for die casting and foundry work, along with machine tools, presses, and primary metal use. The flow rate is rated up to 120 litres per minute, so you should be good to go there.
