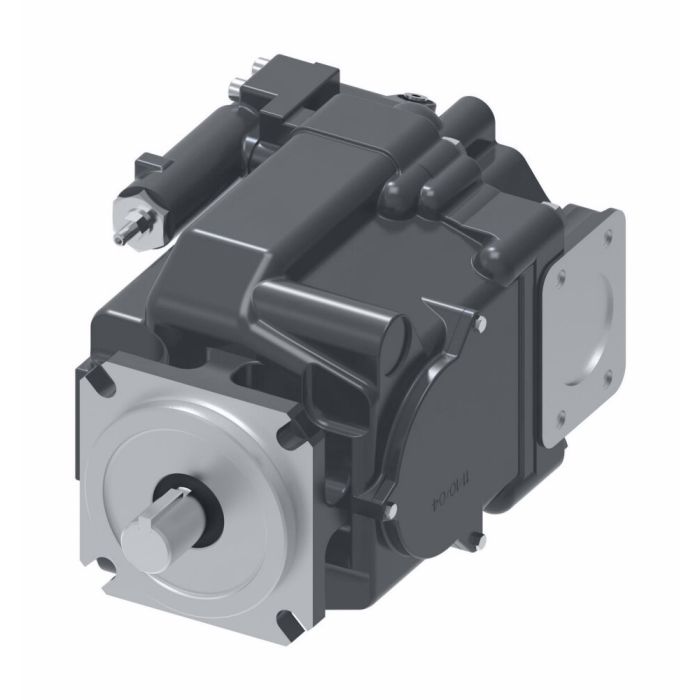

main product photo

VICKERS PVH131QIC RAF 16S 11 C25VT4 31

Ask A Question

Description & Features

Designed for demanding industrial and mobile applications, the Vickers PVH131QIC RAF 16S 11 C25VT4 31 is an open circuit axial piston pump built to handle the rigorous requirements of mining machinery, metal forming machines, injection molding equipment, oil and gas systems, conveyor lines, and metal cutting equipment. Its durable construction supports reliable performance across high-demand duty cycles.

This pump includes a Q250 valve plate and ships without a case-to-inlet check valve, making it suited for configurations where that feature is not required. Torque-limiting capabilities allow it to protect drive components under variable load conditions. As part of the Vickers-branded Danfoss/Eaton PVH series, it reflects the established engineering standards associated with that product line in open circuit hydraulic systems.

SKU: 02-345581

Supplier Part Number (MPN): 02-345581

Specifications

Brand
Vickers by Danfoss
Code Title
Vickers Pressure Compensated/Pressure Flow Compensated Open Circuit Piston Pump
Control Type
Pressure and Flow Compensator
Design Code
A
Dimensions
17.04 in L x 10 in W x 11.29 in H
Drain Port Size Location
7/8-14 UNF-2B SAE O-ring Port - Bottom (Top Plugged)
Drive Shaft Type
Straight Keyed
Front Mounting Input Shaft
4-Bolt C (SAE J744-127-4) with 44.4 [1-3/4] Dia Straight Keyed Shaft (Key Included), 75 mm [2.95 in] Shaft Extension
Housing Material
Iron
Main Ports Size Location
Side Ports, Suction - 2-1/2 SAE 4 Bolt Split Flanged Port Standard Pressure Series (Code 61) with 1/2-13 UNC-2B Threads, Pressure - 1-1/40 SAE 4 Bolt Split Flanged Port High Pressure Series (Code 62) with 1/2-13 UNC-2B Threads
Mounting Type
2-Bolt Flanged
nmfc
125820
Pressure Compensator Setting
246 to 254
Rotation Direction
Clockwise (Right Hand)
Seal Material
Fluorocarbon
Segment Code
C
Series
PVH Series
Special Features
Q250 Valve Plate, No Case to Inlet Check Valve

Product Questions & Answers (2)

Question by: Curt C on Jul 28, 2025, 10:44 AM
pump shows a Q250 valve plate in the specs, does that mean it ships without the case-to-inlet check valve already or is that somethin you gotta remove yourself?
Answer by: Customer Support on Jul 29, 2025, 4:58 PM
It comes that way from the factory. The Q250 valve plate is included, and the case-to-inlet check valve is left out by design, so there's nothing to remove on your end. That configuration is just how this particular unit is set up, which makes it the right fit for systems that don't call for that feature in the first place.
Question by: Billy R on Aug 10, 2025, 8:44 PM
What size is this pump? I need to make sure it'll fit where the old one was.
Answer by: Customer Support on Aug 12, 2025, 6:59 AM
Product width is listed at 10 inches, so you can use that dimension to confirm if it will fit your existing space.
