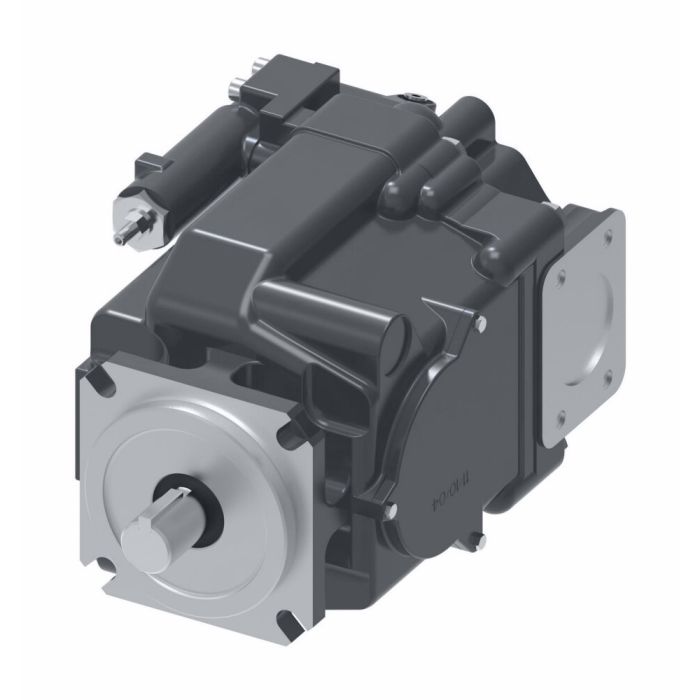

VICKERS PVH074R01AA10A250000001001BC010A

Ask A Question

Description & Features

Designed for demanding industrial environments, the Vickers PVH Series Open Circuit Piston Pumps are ideal for applications such as mining machinery, injection molding machines, and oil and gas equipment. These pumps feature a durable construction with torque-limiting capabilities, ensuring long-lasting performance even in rigorous conditions. The special Q250 valve plate and grooved saddle bearings enhance reliability, while the absence of a case to inlet check valve streamlines operation.

The VICKERS PVH074R01AA10A250000001001BC010A model offers robust durability, making it suitable for primary metals, metal forming, and cutting equipment. With a product width of 8.82 inches, this pump is a versatile component in various industrial systems. Its design underlines the high standards of Vickers, a trusted name in hydraulic supply.

SKU: 02-346699

Supplier Part Number (MPN): 02-346699

Specifications

Brand
Danfoss
Control Type
Pressure Compensator
Controller Type
Pressure Compensator
Design Code
A
Dimensions
14.27 in L x 8.82 in W x 10.59 in H
Drive Shaft Type
Keyed
Front Mounting Input Shaft
4-Bolt C (SAE J744-127-4) with 31.8 [1-1/4] Dia Straight Keyed Shaft (Key Included), 56 mm [2.2 in] Shaft Extension
Housing Material
Iron
Main Ports Size Location
Side Ports, Suction - 2.000 SAE 4 Bolt Split Flanged Port Standard Pressure Series (Code 61) with 1/2-13 UNC-2B Threads, Pressure - 1 SAE 4 Bolt Split Flanged Port Standard Pressure Series (Code 61) with 3/8-16 UNC-2B Threads
Mounting Type
4-Bolt Flanged
Pressure Compensator Setting
246 to 254
Rotation Direction
Clockwise (Right Hand)
Seal Material
Fluorocarbon
Series
PVH Series
Special Features
Q250 Valve Plate, Grooved Saddle Bearings, No Case to Inlet Check Valve

Product Questions & Answers (2)

Question by: Harvey R on Apr 9, 2025, 6:56 AM
We run a pretty hard injection molding setup and need something that ain't gonna quit on us after a few months. How's this pump hold up under that kind of load?
Answer by: Customer Support on Apr 11, 2025, 6:22 AM
Injection molding puts a real strain on hydraulic components, and this pump was built with exactly that kind of demand in mind. The torque-limiting capability helps protect the unit during high-load cycles, and the grooved saddle bearings add to the overall wear resistance. Vickers engineered the PVH series with long-lasting durability as a core priority, not an afterthought, so it holds up well in the kind of continuous, high-pressure environment that molding machines create.
Question by: Johnny S on May 2, 2025, 1:32 PM
I'm workin' on some metal cutting equipment, and need somethin' durable. Y'all think this pump fits the bill?
Answer by: Customer Support on May 3, 2025, 6:26 PM
It's built with a durable construction and torque-limiting capabilities, so it should hold up well in a metal cutting application.
