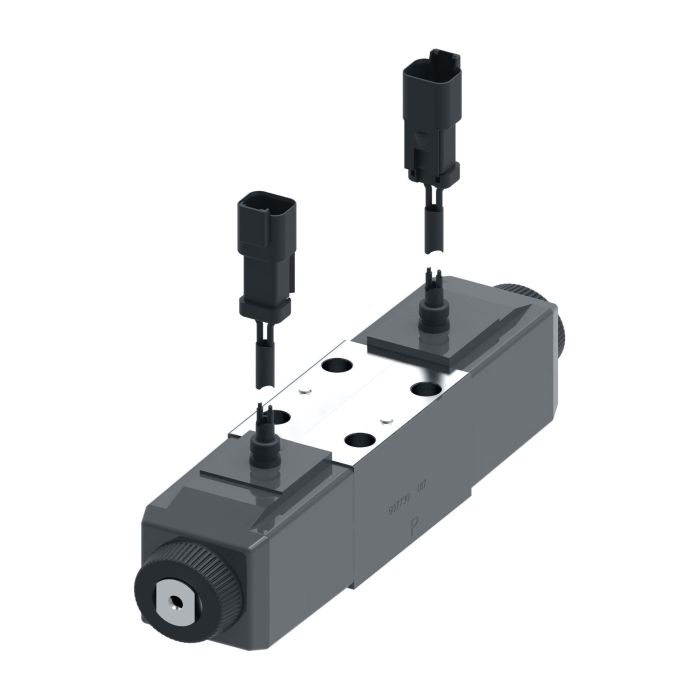

main product photo

DANFOSS / EATON DG4V-3-6C-M-KUP6-D2-G7-60

Ask A Question

Description & Features

Rated for flow up to 80 litres per minute, the Danfoss / Eaton DG4V-3-6C-M-KUP6-D2-G7-60 is a single-stage directional control valve from the Vickers DG4V-3 series, designed for demanding industrial hydraulic systems. It supports three- or four-way directional control and mounts on industry-standard surfaces, making it straightforward to integrate into existing machine configurations.

Buna-N seals and a 30-watt solenoid rating make this valve well-suited for sustained duty across a wide range of applications, including machine tool, press, primary metal processing, marine and offshore equipment, die casting and foundry machinery, test and simulation rigs, and turbine control systems. The DG4V-3 platform spans thousands of configurations, giving engineers flexibility when specifying for varied hydraulic circuit requirements.

SKU: 02-351285

Supplier Part Number (MPN): 02-351285

Specifications

Brand
Vickers by Danfoss
Actuator Type
Solenoid
Body Material
Iron
Color
Gray
Design
60 Series
Dimensions
6.14 in L x 1.8 in W x 3.57 in H
Electrical Connection
Flying Leads Deutsch Connector
Enclosure Type
IP65
Indicator Light
Without Indicator Light
Manual Override
Plain
Media
Petroleum Oil
Number of Stages
1
Performance
High
Seal Material
FKM
Segment Code
C
Series
DG4V-3 60 Series
Softgoods Material
FKM
Spool Position Monitor
Without Spool Position Monitor
Spool Type
Spool 6
Spring Arrangement
Spring Centered
Surge Suppressor Damper
Without Surge Suppressor Damper
Valve Mount Type
Subplate/Manifold

Product Questions & Answers (1)

Question by: Keith P on Jul 5, 2025, 7:03 AM
Can this handle hydraulic systems in a marine environment, you know, out on the water?
Answer by: Customer Support on Jul 6, 2025, 11:06 AM
It's designed for marine and offshore equipment, so it should hold up well in those conditions. Just be sure to follow the recommended maintenance schedule.
