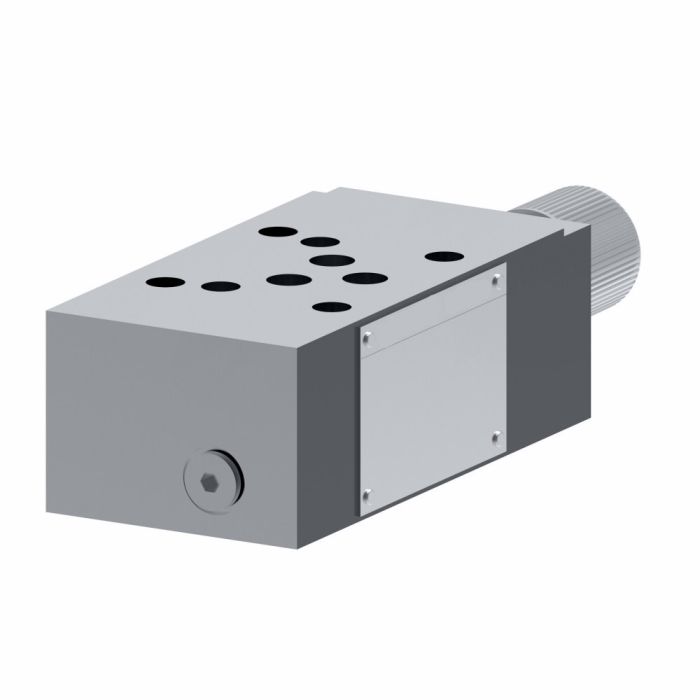

main product photo

VICKERS DGMC7PTGH20

Ask A Question

Description & Features

The Vickers DGMC7PTGH20 is a Design 20 SystemStak directional control valve from Eaton Vickers, rated for flow up to 200 litres per minute. Built around a stacked valve architecture, it reduces installation costs by consolidating circuit components and eliminating the need for external interconnecting lines, which in turn removes potential external leakage paths and boosts resistance to contamination.

Buna-N seals are fitted as standard. This valve is suited to a broad range of demanding industrial applications, including machine tool, press, primary metal, die casting and foundry, marine and offshore, turbine control, and test equipment and simulation environments.

SKU: 02-352624

Supplier Part Number (MPN): 02-352624

Alternate Part Numbers: DGMC7PTGH20

Specifications

Actuator Type
Pressure Operated
Adjustment Type
Handwheel with Locknut
Body Material
Iron
Design
20 Series
Dimensions
9.73 in L x 3.66 in W x 3.15 in H
Discharge 1
Discharge into T
Domestic/Import
Import
First Function
Pressure Limited in P
Media
Anti-Wear Hydraulic Oil
Nominal Size
#07
Number of Stages
1
Performance
Standard
Seal Material
Buna-N
Segment Code
C
Series
DGMC Series
Valve Mount Type
Subplate/Manifold

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Glen K on Nov 17, 2025, 10:42 AM
What kind of machines would this be good for?
Answer by: Customer Support on Nov 19, 2025, 8:37 AM
This valve is applicable to die casting, foundry work, machine tooling, marine or offshore applications, presses, primary metal work, paper production, test equipment and simulation, and turbine control for wind, steam, and water.
