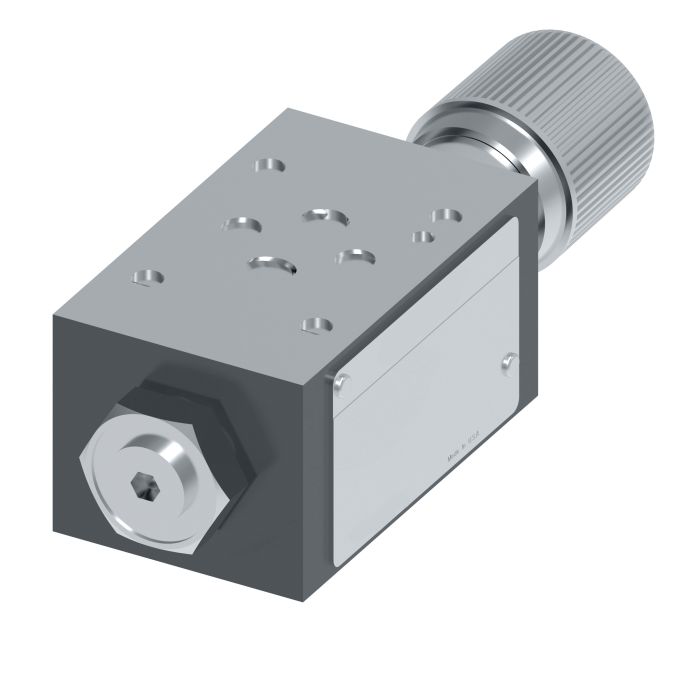

VICKERS-DGMX1 3 PP BH S 40

Description & Features

Designed for machine tool and broader industrial applications, the Vickers DGMX1-3 PP BH S 40 is a SystemStak directional control valve engineered for stacked hydraulic circuit assemblies. Manufactured under the Vickers brand by Danfoss/Eaton, it supports flow rates up to 60 litres per minute and features Buna-N seals suited to a wide range of hydraulic fluids.

SystemStak construction reduces installation costs by eliminating external manifold connections, which also helps prevent external leakage and boosts resistance to fluid contamination. At 2.82 inches wide, the valve integrates efficiently into compact stacked valve assemblies across a variety of industrial machine configurations.

SKU: 02-353239

Supplier Part Number (MPN): 02-353239

Specifications

Brand Vickers by Danfoss	Actuator Type Pressure Operated	Adjustment Location Adjuster - B Port End of Valve	Adjustment Type Handknob	Body Material Iron	Connection Type Female UNF	Design Series 40 Series	Dimensions 7.05 in L x 2.82 in W x 2.36 in H	Domestic/Import Domestic	End Type Female UNF	Function Ports Reducing Line P, Pilot Line P	Gauge Port Thread SAE 4 (7/16-20 UNF-2B)	Language English	Media Petroleum Oil	Nominal Size #03	Number of Ports/Ways 3-Port	Number of Stages 1	Performance Standard	Seal Material FKM	Series DGMX1-3 Series	Valve Mount Type Subplate/Manifold

Product Questions & Answers (1)

Question by: Denise L on Sep 25, 2025, 5:29 PM

flow rate on this one is listed at 60 LPM, that enough for most machine tool setups or is it gonna be a bottleneck in a higher-demand circuit?

Answer by: Customer Support on Sep 26, 2025, 9:30 PM

For the majority of machine tool applications, 60 litres per minute is plenty of capacity. Most standard machine tool hydraulic circuits don't push anywhere near that ceiling during normal operation, so you'd have solid headroom. Where you might start feeling a pinch is in high-cycle or multi-actuator systems demanding sustained peak flow across the whole assembly simultaneously. Within its intended application range though, that flow rating holds up well.
