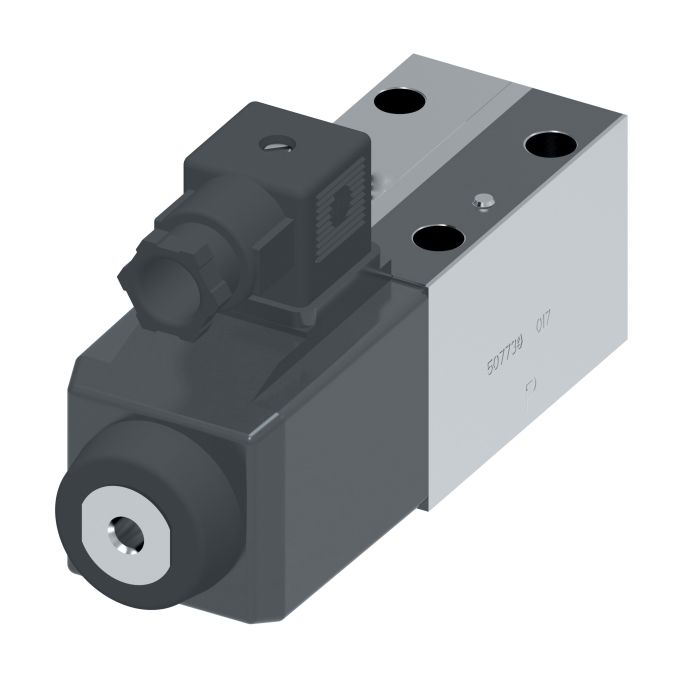

main product photo

VICKERS-KCG-3-350D-Z-M-U1-H1-10

Ask A Question

Description & Features

This Vickers KCG-3-350D-Z-M-U1-H1-10 proportional valve is direct-acting and available in three performance levels (ultra, high, and standard) to suit a wide range of applications.

Applications include die casting, foundry, machine tools, marine/offshore, presses, primary metal, paper, test equipment, simulation, and turbine control (wind, steam, and water).

The valve features plug-and-play functionality to reduce commissioning time. Seal material is Buna-N. Flow rate is 5 liters per minute. Width is 1.8 inches.

SKU: 02-353252

Supplier Part Number (MPN): 02-353252

Specifications

Brand
Vickers by Danfoss
Actuator Type
Solenoid
Build Orientation
Solenoid at B Port End
Design
10 Series
Dimensions
6.1 in L x 1.8 in W x 3 in H
Domestic/Import
Domestic
Electrical Connection
ISO 4400 Fitted Plugs
Feedback Sensor
Without Feedback Sensor
Media
Anti-Wear Hydraulic Oil, Non-Alkyl Based Phosphate Ester
Nominal Size
#03
Number of Stages
1
On Board Electronics
Without On Board Electronics
Performance
Standard
ProFX Compatible
Without ProFX Compatible
Reducer Module
Without Reducer Module
Reverse Flow Check
Without Reverse Flow Check
Seal Material
FKM
Segment Code
C
Series
KCG3 Series
Valve Mount Type
Subplate

Product Questions & Answers (1)

Question by: Rex B on Jul 21, 2025, 2:32 PM
flow rate on this valve is listed at 5 liters per minute -- is that gonna be enough for a press application or is that on the low end for that kind of work?
Answer by: Customer Support on Jul 23, 2025, 8:55 AM
Five liters per minute is on the lower end of the flow spectrum, so it really comes down to your press cycle demands. That said, press applications are explicitly listed as one of the intended uses for this valve, so it's built to operate in that environment. If your press system runs moderate flow requirements, this fits the bill. Higher-demand press setups moving significantly more fluid per minute would likely need a valve spec'd for greater throughput.
