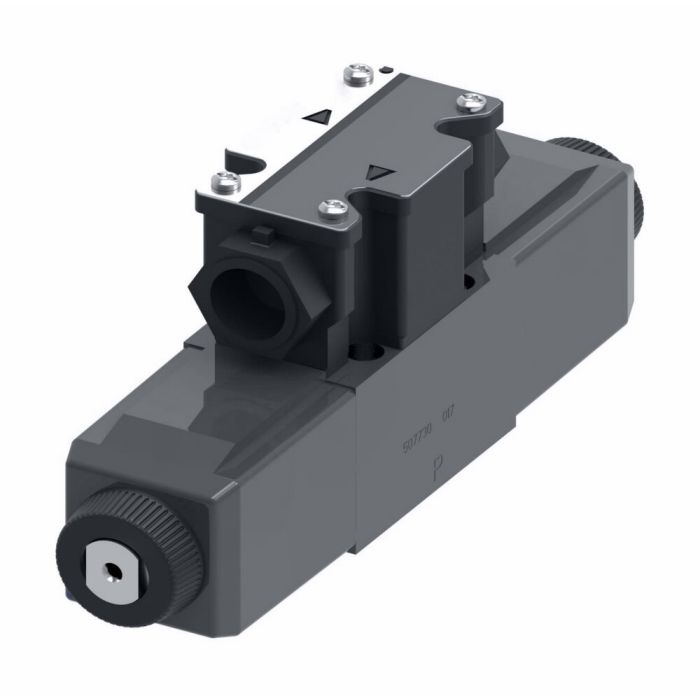

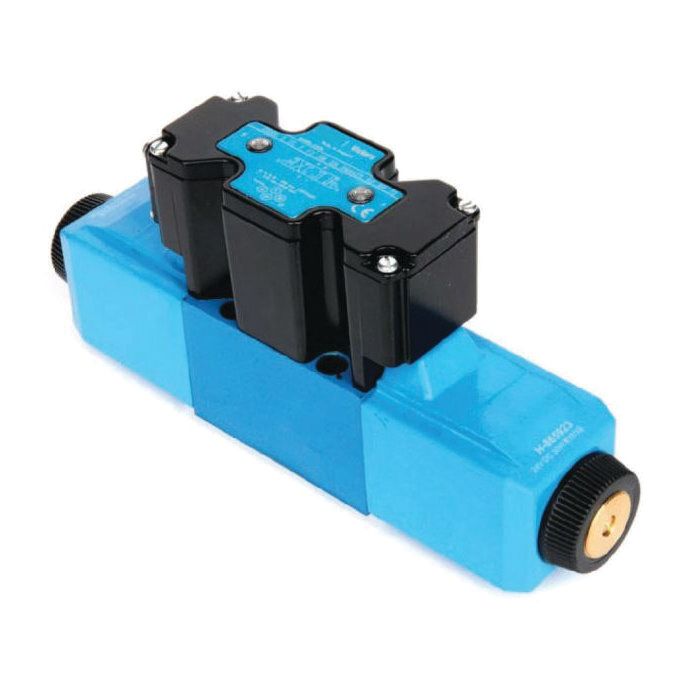

VICKERS DG4V37CMFTWLD7H760

Ask A Question

Description & Features

Designed for three- or four-way directional control in demanding industrial hydraulic circuits, the Vickers DG4V37CMFTWLD7H760 is a single-stage directional control valve rated for flow up to 80 litres per minute. Buna-N seals provide reliable fluid compatibility across a broad range of hydraulic media, and the valve mounts on industry-standard surfaces for straightforward integration into existing systems.

This valve is well suited to high-duty applications including die casting and foundry equipment, machine tools, presses, primary metal and paper processing machinery, marine and offshore installations, test and simulation equipment, and turbine control systems. With thousands of configuration variants available within the DG4V-3 series, it addresses a wide range of flow and circuit requirements across these sectors.

SKU: 02-354058

Supplier Part Number (MPN): 02-354058

Specifications

Brand
Vickers by Danfoss
Actuator Type
Solenoid
Design
60 Series
Dimensions
8.66 in L x 1.8 in W x 3.42 in H
Domestic/Import
Domestic
Electrical Connection
Flying Leads Wired Terminal Block, 1/2 in NPT Thread Wiring Housing
Indicator Light
With Indicator Light
Manual Override
Plain
Media
Petroleum Oil
Number of Stages
1
Performance
High
Seal Material
FKM
Segment Code
C
Series
DG4V-3 60 Series
Spool Position Monitor
Without Spool Position Monitor
Spool Type
Spool 7
Spring Arrangement
Spring Centered
Surge Suppressor Damper
With Surge Suppressor Damper
Valve Mount Type
Subplate/Manifold

Product Questions & Answers (1)

Question by: Scott W on Jun 13, 2025, 6:37 PM
Y'all reckon this here valve would do alright on a die casting machine?
Answer by: Customer Support on Jun 15, 2025, 8:13 AM
This DG4V37CMFTWLD7H760 valve is indeed well-suited for die casting and foundry equipment, along with machine tools and presses.
