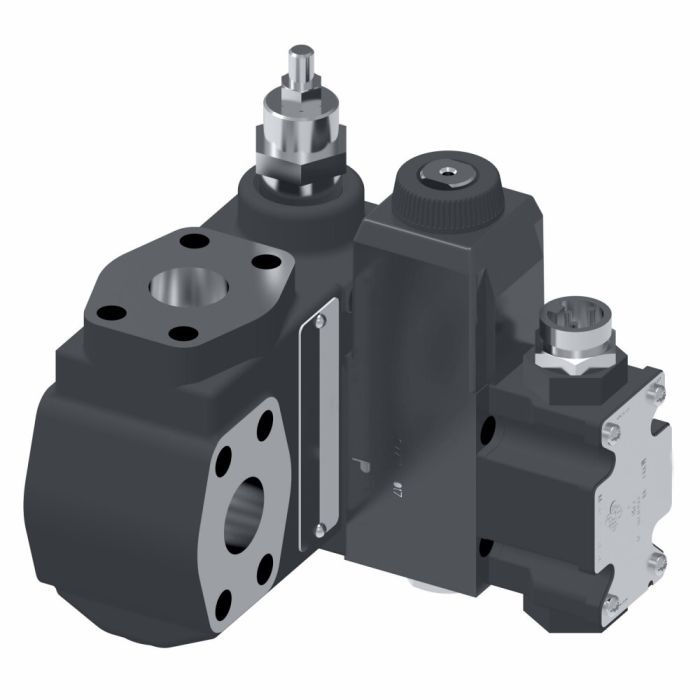

main product photo

VICKERS-CPF2S-08-G-W-3S-M-FPA5WL-B5-20

Ask A Question

Description & Features

This Vickers CPF2S-08 pressure control valve is suitable for applications requiring adjustable pressure relief. It can also regulate the pressure in a hydraulic circuit to a desired maximum.

The Vickers-CPF2S-08-G-W-3S-M-FPA5WL-B5-20 features a plug-and-play design and is moisture resistant. It offers high-performance features and utilizes Buna-N seals. This pressure valve offers a maximum flow rate of 300 liters per minute and a 30-watt power rating. It has a width of 6.07 inches.

SKU: 02-355595

Supplier Part Number (MPN): 02-355595

Specifications

Brand
Vickers by Danfoss
Actuator Type
Solenoid
Adjustment Type
Screw with Locknut
Body Material
Iron
Connection Type
SAE
Design
20 Series
Dimensions
5.68 in L x 6.07 in W x 7.09 in H
Domestic/Import
Domestic
Drain
Internal
Electrical Connection
5-Pin Connector
End Type
SAE
Gauge Port Thread
1/4 in BSP
Hi-Vent Spring
Without Hi-Vent Spring
Indicator Light
With Indicator Light
Manual Override
Plain
Media
Petroleum Oil
Nominal Size
1 in
Number of Stages
2
Performance
Standard
Seal Material
Buna-N
Series
CPF2S-08 Series
Valve Mount Type
Flange-Mounted
Voltage Rating
110 VAC at 50 Hz, 120 VAC at 60 Hz

Product Questions & Answers (2)

Question by: Cody G on Apr 9, 2025, 6:15 PM
what's the max flow this valve can handle before it starts causin problems
Answer by: Customer Support on Apr 11, 2025, 11:10 AM
Rated at 300 liters per minute, so it's got plenty of headroom for most industrial hydraulic circuits. As long as your system stays within that limit, the valve should regulate pressure without issue.
Question by: Brett A on Feb 8, 2026, 3:09 PM
What kind of sealing material is used in this valve?
Answer by: Customer Support on Feb 10, 2026, 9:34 AM
This pressure control valve uses Buna-N seals.
