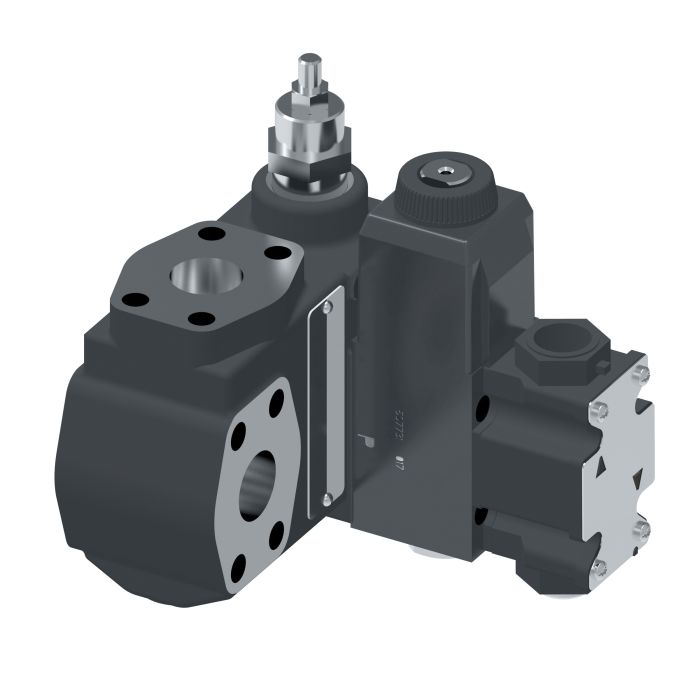

main product photo

VICKERS-CPF2S-12-F-W-1-3S-M-FW-B5-20

Ask A Question

Description & Features

The VICKERS-CPF2S-12-F-W-1-3S-M-FW-B5-20 pressure control valve is designed for applications requiring adjustable pressure relief. It effectively limits pressure in hydraulic circuits to a desired maximum. This Vickers valve features a plug-and-play design and moisture resistance.

This pressure valve has a maximum flow rate of 800 liters per minute and uses Buna-N seals. It has a width of 6.5 inches and wattage of 30.

SKU: 02-355656

Supplier Part Number (MPN): 02-355656

Specifications

Brand
Vickers by Danfoss
Actuator Type
Solenoid
Adjustment Type
Screw with Locknut
Body Material
Iron
Connection Type
SAE
Design
20 Series
Dimensions
7.55 in L x 6.5 in W x 7.09 in H
Domestic/Import
Domestic
Drain
External
Electrical Connection
1/2 in NPT Housing Flying Leads
End Type
SAE
Gauge Port Thread
1/4 in BSP
Hi-Vent Spring
Without Hi-Vent Spring
Indicator Light
Without Indicator Light
Manual Override
Plain
Media
Petroleum Oil
Number of Stages
2
Performance
Standard
Seal Material
Buna-N
Series
CPF2S-12 Series
Valve Mount Type
Flange-Mounted
Voltage Rating
110 VAC at 50 Hz, 120 VAC at 60 Hz

Product Questions & Answers (2)

Question by: Troy M on Apr 25, 2025, 8:21 AM
Got a circuit that keeps creeping over pressure and we need something we can dial in ourselves. This the kind of valve that lets you set your own max, or is it fixed from the factory?
Answer by: Customer Support on Apr 27, 2025, 6:43 AM
Adjustable, not fixed. The whole point of this valve is letting you set the pressure ceiling for your hydraulic circuit rather than being locked into one value. It limits pressure to whatever maximum you need for your application, so if your system keeps spiking past where it should, this is built for exactly that kind of correction.
Question by: Wade E on May 16, 2025, 8:26 AM
Wondering if this pressure valve would be suitable for a hydraulic system needing precise pressure regulation?
Answer by: Customer Support on May 17, 2025, 11:09 AM
For applications requiring adjustable pressure relief and limiting pressure in hydraulic circuits to a desired maximum, this pressure control valve will work.
