VICKERS-DGMDC 3 X TK 41 EN417

Description & Features

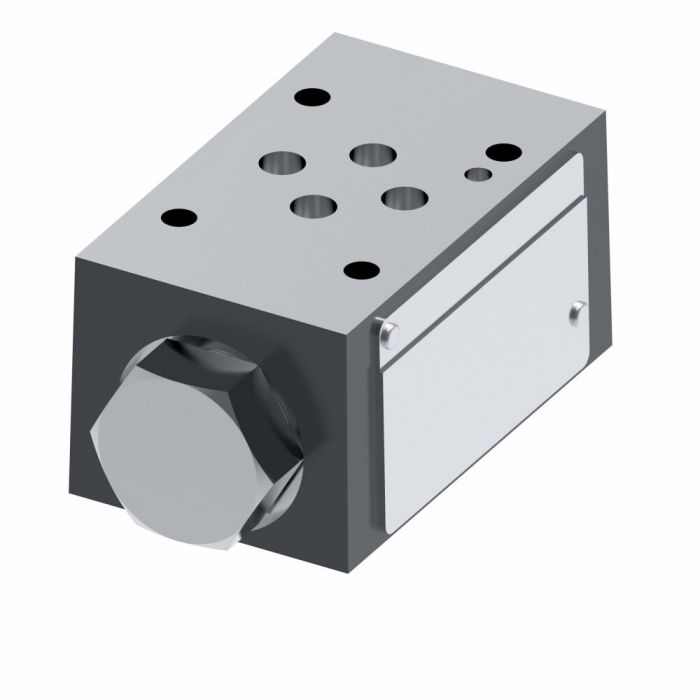

The Vickers-DGMDC 3 X TK 41 EN417 is a SystemStak valve designed for directional control applications. This Vickers sub-brand valve is suitable for use in die casting and foundry environments, as well as machine tool, marine/offshore, press, primary metal, paper, and turbine control (wind, steam, water) applications.

Constructed with Buna-N seals, this valve offers reliable performance. It can help reduce installation costs and eliminate external leakage, while also boosting resistance to contamination. It has a maximum flow rate of 60 liters per minute. Its width measures 1.87 inches.

SKU: 02-355845

Supplier Part Number (MPN): 02-355845

Specifications

Brand Vickers by Danfoss	Actuator Type Pressure Operated	Body Material Iron	Check Location Line T	Design Series 41 Series	Dimensions 3.46 in L x 1.87 in W x 1.57 in H	Direction of Flow Away From Actuator	Domestic/Import Domestic	Language English	Material Standard ANSI B93.7M-D03	Media Petroleum Oil	Mounting Type Manifold, Subplate	Nominal Size #03	Performance Standard	Seal Material FKM	Series DGMDC-3 Series	Special Features Not Tested	Valve Mount Type Subplate/Manifold

Similar Products

Model Number	Flow Rate	Dimensions	Cracking Pressure	Price	Action
02-109849		4 in L x 1.87 in W x 1.57 in H
02-138524		3.46 in L x 1.87 in W x 1.57 in H
DGMDC-3-Y-PM-41 SystemStak D03 Check Valve		3.46 in L x 1.87 in W x 1.57 in H
02-156422		3.5 in L x 1.87 in W x 1.57 in H
02-157021		3.46 in L x 1.87 in W x 1.57 in H
02-157275		3.46 in L x 1.87 in W x 1.57 in H
02-311483		3.46 in L x 1.87 in W x 1.57 in H
02-312345		3.5 in L x 1.87 in W x 1.57 in H
02-318150		3.46 in L x 1.87 in W x 1.57 in H
02-318156		3.46 in L x 1.87 in W x 1.57 in H
02-323263		3.5 in L x 1.87 in W x 1.57 in H
02-355844		3.46 in L x 1.87 in W x 1.57 in H

Product Questions & Answers (1)

Question by: Randy B on Sep 11, 2025, 6:06 AM

what kind of environments is this valve actually built for? running a press line and trying to figure out if it holds up in that kind of setting

Answer by: Customer Support on Sep 13, 2025, 6:23 AM

Press applications are one of the listed uses for this valve, along with die casting, foundry work, machine tool use, and a few others including marine and turbine control setups. The Buna-N seals and built-in contamination resistance make it a reasonable fit for demanding industrial environments where cleanliness and leak control matter. At 60 liters per minute max flow, it covers most mid-range press line requirements without issue.
