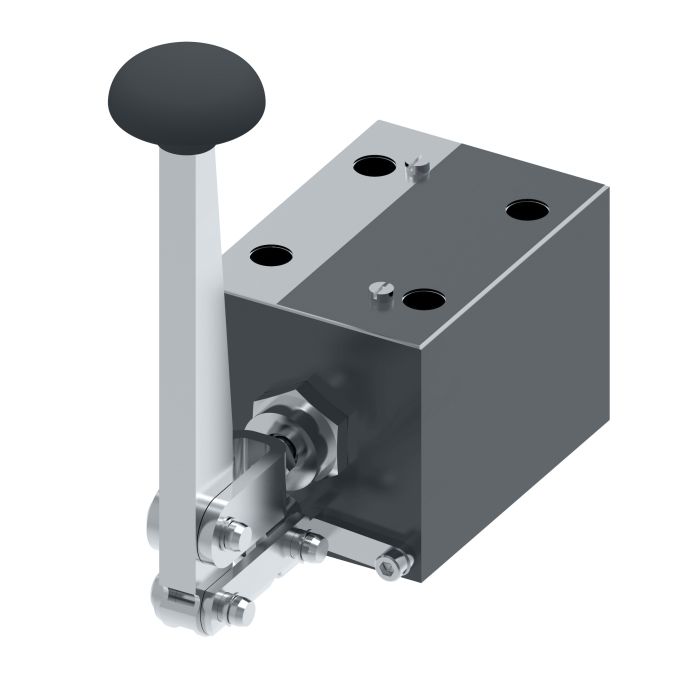

main product photo

VICKERS DG17V4012N10

Ask A Question

Description & Features

The Vickers DG17V4012N10 is a versatile directional control valve designed for a range of industrial applications, including die casting, machine tools, marine, and turbine control. Engineered by Eaton Vickers, this valve offers both three- and four-way directional control, making it suitable for diverse operational needs. It is easily mountable on industry-standard surfaces, ensuring seamless integration into existing systems.

With a flow rate of 114 liters per minute, the Vickers DG17V4012N10 provides reliable performance in demanding environments. The valve's construction features Buna-N seal material, enhancing its durability and resistance to wear. This model is part of the IV Directional Control Valves series, known for their robust design and flexibility in application.

SKU: 02-356396

Supplier Part Number (MPN): 02-356396

Specifications

Brand
Vickers by Danfoss
Actuator Type
Solenoid, Manual Lever
Design
10 Series
Dimensions
6.9 in L x 2.75 in W x 7.06 in H
Domestic/Import
Domestic
Indicator Light
Without Indicator Light
Language
English
Media
Petroleum Oil
Number of Stages
1
Performance
High-Performance
Seal Material
Buna-N
Series
DG17V4-01 10 Series
Spool Position Monitor
Without Spool Position Monitor
Spool Type
Spool 2
Spring Arrangement
No Spring Detented
Surge Suppressor Damper
Without Surge Suppressor Damper
Valve Mount Type
Subplate/Manifold

Product Questions & Answers (2)

Question by: Cindy B on Sep 19, 2025, 10:14 AM
got a hydraulic setup that needs a single-stage directional valve. what exactly is this DG17V4-01 10 design used for?
Answer by: Customer Support on Sep 20, 2025, 3:50 PM
Used to direct hydraulic flow in three-way or four-way circuits, this is a single-stage directional control valve in the Vickers DG17V4-01 10 design family. It’s meant for systems where you need reliable on off shifting of flow paths in industrial hydraulic equipment.
Question by: Neil M on May 2, 2025, 9:50 PM
flow rate on this valve is listed at 114 liters per minute -- that enough for a press application runnin pretty hard?
Answer by: Customer Support on May 4, 2025, 12:27 PM
For press applications, 114 liters per minute is a solid capacity and falls well within the range that single-stage directional control valves like this one are commonly paired with. The DG17V4-012N10 is specifically listed for press use among its supported applications, so the flow rating lines up with that kind of demand. Just make sure your system circuit and line sizing are matched to that flow to keep pressure drop in check.
