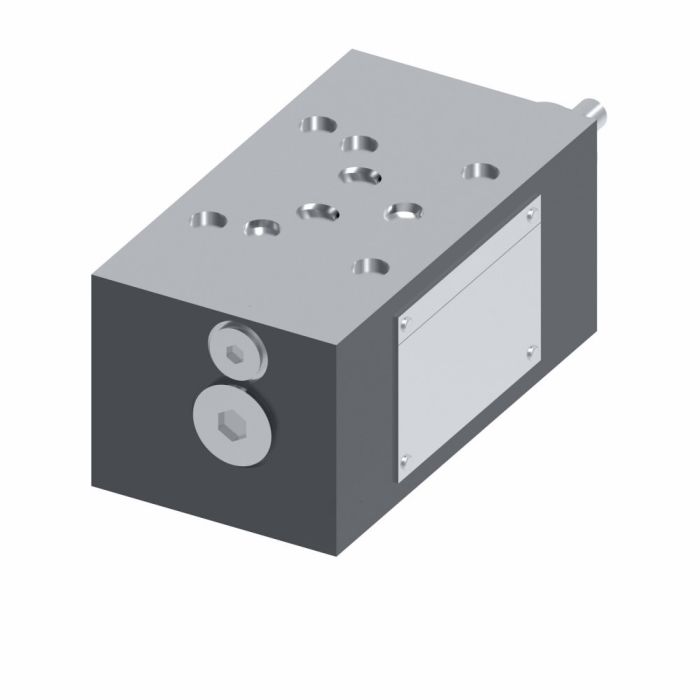

main product photo

VICKERS-DGMX2-5-PP-FW-S-30-EN417

Ask A Question

Description & Features

Designed for machine tool and general industrial hydraulic circuits, the VICKERS-DGMX2-5-PP-FW-S-30-EN417 is a SystemStak directional control valve from Vickers by Danfoss/Eaton, built to the 30 Design standard. As part of the SystemStak series, it uses a stacked valve configuration that reduces installation complexity by eliminating the need for individual block manifolds and external interconnecting hardware.

Rated for flow up to 120 litres per minute, this valve is sealed with Buna-N seals, which provide reliable resistance to common hydraulic fluids. The stacked design also minimizes potential external leak paths and improves resistance to contamination, practical advantages in demanding machine tool environments where system cleanliness is critical. The valve falls within the directional control classification and carries a 2.82-inch product width.

SKU: 02-357703

Supplier Part Number (MPN): 02-357703

Specifications

Brand
Vickers by Danfoss
Actuator Type
Pressure Operated
Adjustment Type
Screw and Locknut
Body Material
Iron
Connection Type
Female UNF
Design Series
30 Series
Dimensions
8.19 in L x 2.82 in W x 2.36 in H
Domestic/Import
Domestic
End Type
Female UNF
External Drain
Without External Drain
Gauge Port Thread
SAE 4 O-ring Boss Port
Language
English
Media
Petroleum Oil
Nominal Size
#5
Number of Ports/Ways
5-Port
Number of Stages
1
Performance
Standard
Pilot Control
Pressure Port
Port Operated Upon
P Pressure Port
Remote Control Port
Without Remote Control Port
Seal Material
FKM
Series
DGMX2-5 Series
Special Features
Not Tested
Valve Mount Type
Subplate/Manifold

Similar Products

Model Number Connection Type End Type Dimensions Price Action
VICKERS DGMX2 5 PP AK B 30

02-101518

BSP

BSP

8.19 in L x 2.82 in W x 2.36 in H

VICKERS DGMX2 5 PB AK B 30

02-101519

BSP

BSP

9.16 in L x 2.82 in W x 2.36 in H

VICKERS-DGMX2 5 PA AW E B 30

02-101656

BSP

BSP

8.19 in L x 2.82 in W x 2.36 in H

VICKERS DGMX2 5 PA FW B 30

02-101968

BSP

BSP

8.19 in L x 2.82 in W x 2.36 in H

VICKERS DGMX2-5-PP-AH-B-30

02-119444

BSP

BSP

7.05 in L x 2.82 in W x 2.36 in H

VICKERS DGMX2-5-PP-GW-E-B-30

02-119821

BSP

BSP

8.19 in L x 2.82 in W x 2.36 in H

VICKERS DGMX2 5 PP FW E B 30

02-126174

BSP

BSP

9.16 in L x 2.82 in W x 2.36 in H

VICKERS DGMX2 5 PP FH S 30

02-126863

Female UNF

Female UNF

6.69 in L x 2.82 in W x 2.36 in H

Vickers DGMX2 5 PB FW RC S

02-140109

Female UNF

Female UNF

6.65 in L x 2.82 in W x 2.36 in H

VICKERS DGMX2 5 PP FH B 30

02-140896

BSP

BSP

6.65 in L x 2.82 in W x 2.36 in H

VICKERS DGMX2 5 PP GW RC S 30

02-143719

Female UNF

Female UNF

9.13 in L x 3.66 in W x 3.15 in H

Vickers DGMX2 5 PP BW RC S

02-143807

Female UNF

Female UNF

9.13 in L x 3.66 in W x 3.15 in H

Vickers DGMX2 5 PP FW RC S

02-143808

Female UNF

Female UNF

6.65 in L x 2.82 in W x 2.36 in H

VICKERS-DGMX2-5-PP-FW-RC-B-30

02-143815

BSP

BSP

9.13 in L x 3.66 in W x 3.15 in H

VICKERS-DGMX2-5-PP-GW-RC-B-30

02-143816

BSP

BSP

7.05 in L x 2.82 in W x 2.36 in H

VICKERS DGMX2 5 PB FW B 30

02-145043

BSP

BSP

7.05 in L x 2.82 in W x 2.36 in H

VICKERS DGMX2 5 PA FH S 30

02-148466

Female UNF

Female UNF

6.65 in L x 2.82 in W x 2.36 in H

VICKERS DGMX2 5 PP FK S 30

02-148614

Female UNF

Female UNF

9.16 in L x 2.82 in W x 2.36 in H

VICKERS-DGMX2 5 PA FH B 30

02-148887

BSP

BSP

6.65 in L x 2.82 in W x 2.36 in H

VICKERS DGMX2 5 PB AH S 30

02-149258

Female UNF

Female UNF

6.65 in L x 2.82 in W x 2.36 in H

VICKERS DGMX2 5 PP GH S 30

02-301773

Female UNF

Female UNF

8.19 in L x 2.82 in W x 2.36 in H

VICKERS-DGMX2-5-PA-BW-E-B-30

02-304576

BSP

BSP

6.65 in L x 2.82 in W x 2.36 in H

VICKERS DGMX2-5-PA-GW-E-B-30

02-304577

BSP

BSP

6.65 in L x 2.82 in W x 2.36 in H

VICKERS DGMX2 5 PB BH S 30

02-309006

Female UNF

Female UNF

9.16 in L x 2.82 in W x 2.36 in H

Vickers DGMX2 5 PP BW E RC

02-317980

Female UNF

Female UNF

8.19 in L x 2.82 in W x 2.36 in H

Vickers DGMX2 5 PP FW E RC

02-321725

Female UNF

Female UNF

8.19 in L x 2.82 in W x 2.36 in H

VICKERS-DGMX2 5 PB BW E B 30

02-324296

BSP

BSP

8.19 in L x 2.82 in W x 2.36 in H

VICKERS-DGMX2 5 PP BH E B 30

02-329513

BSP

BSP

9.16 in L x 2.82 in W x 2.36 in H

VICKERS DGMX2 5 PA GH S 30

02-330061

Female UNF

Female UNF

9.16 in L x 2.82 in W x 2.36 in H

VICKERS DGMX2 5 PA BW RC S 30

02-343858

Female UNF

Female UNF

8.19 in L x 2.82 in W x 2.36 in H

VICKERS-DGMX2 5 PB BW RC S 30

02-355475

Female UNF

Female UNF

8.19 in L x 2.82 in W x 2.36 in H

VICKERS-DGMX2 5 PP GW E RC S 30

02-361876

Female UNF

Female UNF

8.19 in L x 2.82 in W x 2.36 in H

Product Questions & Answers (2)

Question by: Stan C on Mar 25, 2026, 10:42 AM
What kinda machine is this directional valve usually hooked up to?
Answer by: Customer Support on Mar 26, 2026, 12:01 PM
Most often, this directional control valve finds a home in machine tool and general industrial hydraulic circuits.
Question by: Janice T on May 21, 2025, 8:11 PM
flow rate on this one says 120 litres per minute -- is that enough for most machine tool setups or is it on the lower end?
Answer by: Customer Support on May 23, 2025, 8:31 AM
For the majority of machine tool hydraulic circuits, 120 litres per minute is solid. Most standard machine tool applications run well within that range, so you're not going to be bumping up against the ceiling in typical use. Where you'd start pushing limits is in high-flow multi-actuator systems, but for general industrial and machine tool work, that rating covers a wide range of real-world setups without issue.
