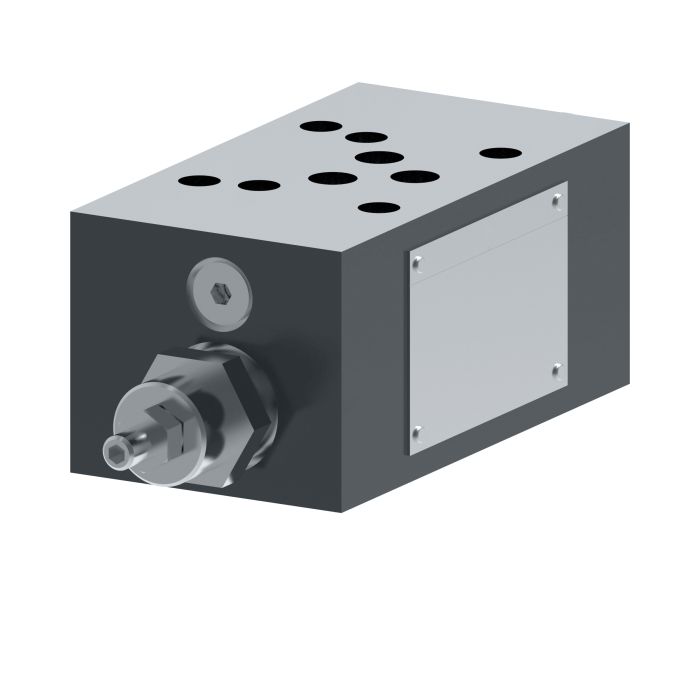

main product photo

VICKERS-DGMC2 5 AT AW BT AW B 30

Ask A Question

Description & Features

This Vickers DGMC2-5 30 design SystemStak valve is suitable for applications including die casting and foundry work, machine tools, marine and offshore environments, presses, primary metal, plastics, pulp and paper, and test equipment.

The Vickers-DGMC2 5 AT AW BT AW B 30 features Buna-N seals and a flow rate of 120 liters per minute. SystemStak valves reduce installation costs, eliminate external leakage, and boost resistance to contamination.

SKU: 02-360349

Supplier Part Number (MPN): 02-360349

Specifications

Brand
Vickers by Danfoss
Actuator Type
Pressure Operated
Adjustment Type
Screw and Locknut
Body Material
Iron
Design
30 Series
Dimensions
9.84 in L x 2.82 in W x 1.97 in H
Domestic/Import
Domestic
External Drain
Without External Drain
Function 1 Pressure Adjustment
60 to 725 psi
Function 2 Pressure Adjustment
60 to 725 psi
Gauge Port Thread
G1/8 BSPF
Media
Petroleum Oil
Nominal Size
#5
Number of Stages
2
P Port Acted Upon
B Cylinder Port
Performance
Standard
Port Drained Into
Tank Port
Port Drained Into Dual
T Port
Port Operated Upon
A Cylinder Port
Remote Control Port
Without Remote Control Port
Seal Material
FKM
Series
DGMC-2 Series
Valve Mount Type
Subplate/Manifold

Product Questions & Answers (1)

Question by: Carl A on Jan 1, 2026, 3:37 PM
Is this valve alright for a machine tool application, or is it better suited for something else?
Answer by: Customer Support on Jan 3, 2026, 6:25 AM
It's well-suited for machine tool applications, but this SystemStak valve is also frequently used in die casting, foundry work, marine/offshore environments, presses, primary metal, plastics, pulp and paper, and test equipment.
