F3-DG5V-8-H-2N-T-M-U-B-10

Description & Features

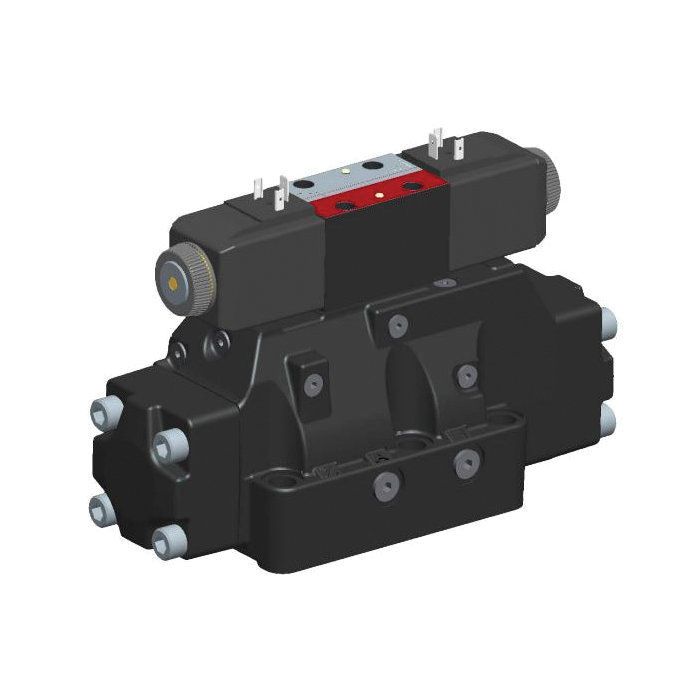

Designed for demanding industrial environments, the Vickers by Danfoss F3-DG5V-8-H-2N-T-M-U-B-10 is a two-stage directional control valve capable of handling flow rates up to 700 litres per minute. It supports three- or four-way directional control and mounts easily on industry-standard surfaces, making it a practical fit across a wide range of hydraulic systems.

With Buna-N seals and a broad application footprint, this valve is suited for use in die casting and foundry equipment, machine tools, presses, primary metal and paper machinery, marine and offshore installations, test and simulation equipment, and turbine control systems, including wind, steam, and water turbine applications. The DG5V-8 series offers a wide model range to match varied configuration requirements.

SKU: 02-360358

Supplier Part Number (MPN): 02-360358

Specifications

Actuator Type Pilot Operated, Solenoid	Body Material Iron	Design 10 Series	Dimensions 10.45 in L x 4.67 in W x 7.79 in H	Domestic/Import Domestic	Electrical Connection ISO 4400 (DIN 43650) Connector	Enclosure Type IP65, NEMA 4	Ext Pilot Pressure Internal	Gauge Port Thread 7/16-20 UNF, SAE Thread	Indicator Light Without Indicator Light	Int Pilot Drain Internal	Language English	Manual Override Plain	Media Phosphate Ester	Nominal Size #08	Number of Ports/Ways 4-Port	Number of Stages 2	Performance High-Performance	Port Type SAE	Seal Material FKM	Series DG5V-8 10 Series	Softgoods Material Nitrile	Spool Position Monitor Without Spool Position Monitor	Spool Type Spool 2	Spring Arrangement Spring Centered	Surge Suppressor Damper Without Surge Suppressor Damper	Valve Mount Type Subplate/Manifold

Product Questions & Answers (2)

Question by: Jimmy R on Dec 12, 2025, 1:16 PM

What flow rate can this valve handle?

Answer by: Customer Support on Dec 13, 2025, 3:53 PM

This Vickers by Danfoss valve can handle flow rates up to 700 litres per minute.

Question by: Eddie B on Aug 20, 2025, 10:02 AM

got a press line running pretty heavy flow demands, wondering if this valve can keep up, what's the max flow it handles?

Answer by: Customer Support on Aug 22, 2025, 6:39 AM

700 litres per minute is the rated flow capacity on this one. For heavy press applications, that's a solid ceiling. The DG5V-8 series is actually listed for press use right alongside die casting, machine tool, and primary metal equipment, so it's well within its intended territory for that kind of work.
