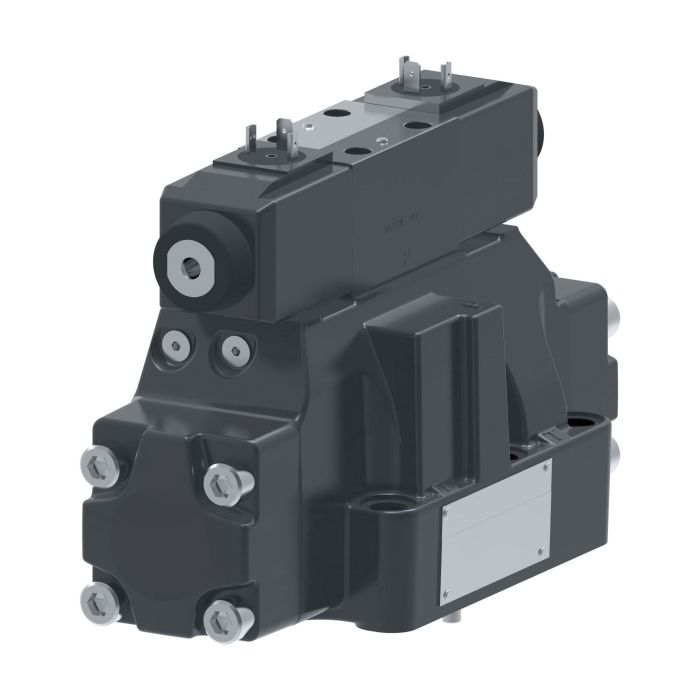

VICKERS DG5V8H3CMUH10

Ask A Question

Description & Features

Ideal for applications in die casting, machine tool use, marine/offshore environments, and turbine control, the Vickers DG5V8H3CMUH10 Directional Control Valve delivers precision and reliability. This versatile valve supports both three- and four-way directional control, making it adaptable to a wide range of industrial settings. Its robust design ensures compatibility with industry-standard mounting surfaces, providing easy integration into existing systems.

With a flow rate of 700 liters per minute, this valve efficiently manages fluid control in high-demand scenarios. Constructed with Buna-N seals, the valve offers durability and resistance to various industrial fluids. The Vickers brand, known for its innovation and quality, ensures that the DG5V8H3CMUH10 meets the rigorous demands of primary metal and paper industries, as well as test equipment and simulation applications.

SKU: 02-361275

Supplier Part Number (MPN): 02-361275

Specifications

Brand
Vickers by Danfoss
Actuator Type
Solenoid, Pilot Operated
Design
10 Series
Dimensions
10.45 in L x 4.67 in W x 7.79 in H
Domestic/Import
Domestic
Ext Pilot Pressure
Internal
Gauge Port Thread
7/16-20 UNF, SAE Thread
Indicator Light
Without Indicator Light
Int Pilot Drain
External
Manual Override
Plain
Media
Petroleum Oil
Number of Stages
2
Performance
High
Seal Material
Buna-N
Segment Code
C
Series
DG5V-8 10 Series
Spool Position Monitor
Without Spool Position Monitor
Spool Type
Spool 3
Spring Arrangement
Spring Centered
Surge Suppressor Damper
Without Surge Suppressor Damper
Valve Mount Type
Subplate/Manifold

Product Questions & Answers (1)

Question by: Eddie A on Mar 16, 2026, 9:09 AM
flow rate on this one is listed at 700 liters per minute, is that enough for high-volume press or die casting work, or is it more of a mid-range valve?
Answer by: Customer Support on Mar 17, 2026, 10:40 AM
For die casting and press applications, 700 liters per minute is a serious flow rate. That puts it firmly in the high-capacity range for directional control valves, so it's not going to be a bottleneck in most demanding production environments. The valve is specifically rated for die casting and foundry use, so it's built with those kinds of flow demands in mind.
