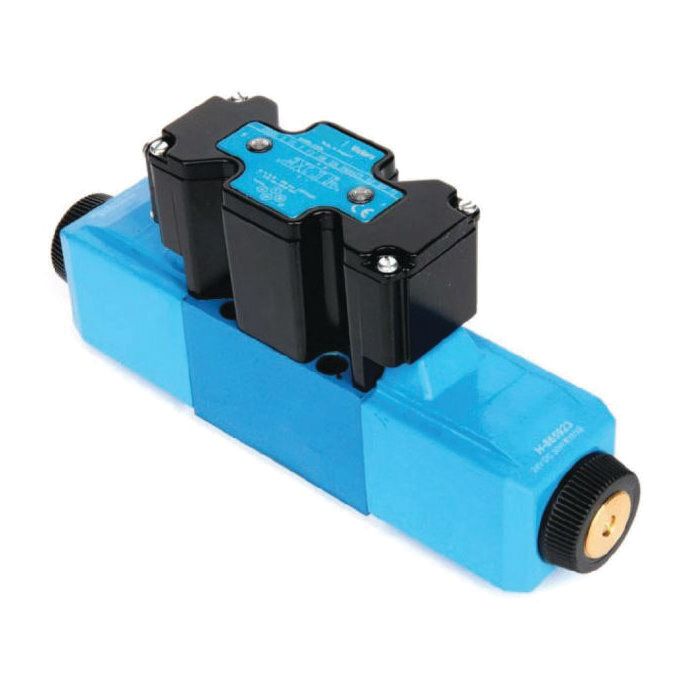

VICKERS DG4V32CMUD7DS760

Ask A Question

Description & Features

Designed for three- or four-way directional control in demanding industrial hydraulic systems, the Vickers DG4V32CMUD7DS760 is a single-stage directional control valve built to the DG4V-3 60 Design specification. With a flow rate of 80 litres per minute and a coil wattage of 30W, it suits a broad range of medium-duty hydraulic circuits. Buna-N seals provide reliable fluid compatibility across standard hydraulic media.

This valve mounts on industry-standard surfaces, simplifying integration into existing manifold assemblies. Suitable applications include machine tool, press, primary metal, marine and offshore, die casting and foundry, test equipment and simulation, and turbine control systems covering wind, steam, and water turbines. The DG4V-3 platform supports thousands of configuration variants, making it a well-established choice where directional control flexibility is required across multiple industries.

SKU: 02-362108

Supplier Part Number (MPN): 02-362108

Specifications

Brand
Vickers by Danfoss
Actuator Type
Solenoid
Design
60 Series
Dimensions
8.66 in L x 1.8 in W x 3.57 in H
Domestic/Import
Domestic
Indicator Light
Without Indicator Light
Manual Override
Plain
Media
Petroleum Oil
Number of Stages
1
Performance
High
Seal Material
FKM
Segment Code
B
Series
DG4V-3 60 Series
Spool Position Monitor
Without Spool Position Monitor
Spool Type
Spool 2
Spring Arrangement
Spring Centered
Surge Suppressor Damper
With Surge Suppressor Damper
Valve Mount Type
Subplate/Manifold

Product Questions & Answers (2)

Question by: Freddie E on Dec 28, 2025, 1:31 PM
Flow rate on this one listed as 80 litres per minute -- that holding up across the kind of applications they're talking about here, like press work or die casting?
Answer by: Customer Support on Dec 30, 2025, 6:03 AM
For press and die casting circuits, 80 litres per minute is a solid working capacity for medium-duty systems. Those applications tend to run demanding cycles, and this valve is specifically listed as suitable for both. The 30W coil keeps power draw reasonable without sacrificing response in those environments. As long as your system is sized within that flow range, it fits the bill for what those industries typically need from a single-stage directional control valve.
Question by: Clint S on Dec 21, 2025, 5:31 PM
Will this work with standard hydraulic fluids, or do I need something special?
Answer by: Customer Support on Dec 23, 2025, 10:45 AM
Buna-N seals provide good fluid compatibility across standard hydraulic media, so you shouldn't need anything special.
