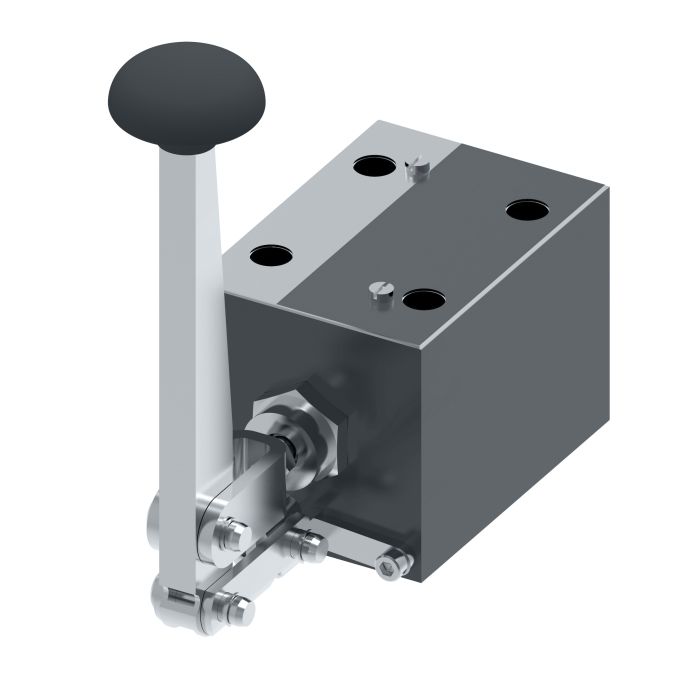

VICKERS DG17V4010C10

Ask A Question

Description & Features

Rated for flow up to 114 litres per minute, the Vickers DG17V4010C10 is a single-stage directional control valve designed for demanding industrial hydraulic circuits. It supports three- or four-way directional control and mounts on industry-standard surfaces, making it straightforward to integrate into existing machine configurations.

With Buna-N seals and a broad application range, this valve is well-suited for use in die casting and foundry equipment, machine tools, presses, primary metal and paper processing machinery, marine and offshore systems, test and simulation rigs, and turbine control systems covering wind, steam, and water applications. The DG17V-01 series offers a wide range of model configurations to address varied circuit requirements across these sectors.

SKU: 02-362428

Supplier Part Number (MPN): 02-362428

Specifications

Brand
Vickers by Danfoss
Actuator Type
Solenoid, Manual Lever
Design
10 Series
Dimensions
6.9 in L x 2.75 in W x 7.06 in H
Domestic/Import
Domestic
Indicator Light
Without Indicator Light
Language
English
Media
Petroleum Oil
Number of Stages
1
Performance
Standard-Performance
Seal Material
Buna-N
Series
DG17V4-01 10 Series
Spool Position Monitor
Without Spool Position Monitor
Spool Type
Spool 0
Spring Arrangement
Spring Centered
Surge Suppressor Damper
Without Surge Suppressor Damper
Valve Mount Type
Subplate/Manifold

Product Questions & Answers (1)

Question by: Jerry A on Sep 27, 2025, 12:27 PM
flow rate on this one listed as 114 litres per minute, that converting to roughly 30 gallons per minute or so for a standard industrial press setup?
Answer by: Customer Support on Sep 28, 2025, 8:22 PM
114 litres per minute works out to about 30 gallons per minute, yes. For press applications that's a solid flow capacity, and the DG17V4010C10 is explicitly rated for press use alongside die casting equipment, machine tools, and a few other heavy-duty setups. Worth keeping in mind that Buna-N is the seal material here, so as long as your hydraulic fluid is compatible with that, you should be in good shape on the fluid side.
