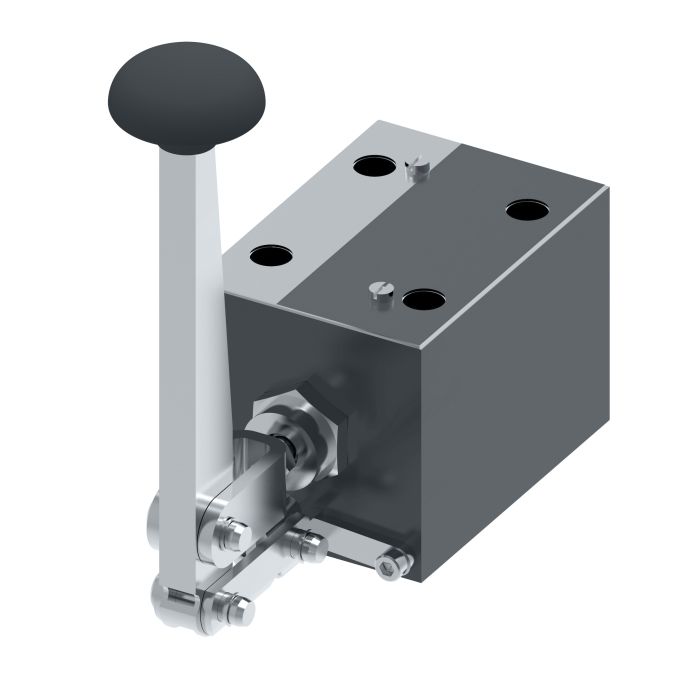

VICKERS DG17V4012A10

Ask A Question

Description & Features

The Eaton Vickers DG17V4012A10 is a single-stage directional control valve, designed for applications including die casting and foundry, machine tools, marine/offshore, presses, primary metal, paper, test equipment and simulation, and turbine control (wind, steam, and water).

This Vickers directional control valve features three- or four-way directional control and is easily mountable on industry-standard surfaces. It handles a flow rate of 114 liters per minute and uses Buna-N seals. The product width is 2.75 inches.

SKU: 02-362429

Supplier Part Number (MPN): 02-362429

Alternate Part Numbers: C1JV66, DG17V4012A10

Specifications

Brand
Vickers by Danfoss
Actuator Type
Solenoid, Manual Lever
Design
10 Series
Dimensions
6.9 in L x 2.75 in W x 7.06 in H
Domestic/Import
Domestic
Indicator Light
Without Indicator Light
Language
English
Media
Petroleum Oil
Number of Stages
1
Performance
Standard-Performance
Seal Material
Buna-N
Series
DG17V4-01 10 Series
Spool Position Monitor
Without Spool Position Monitor
Spool Type
Spool 2
Spring Arrangement
Spring Offset (Handle Out)
Surge Suppressor Damper
Without Surge Suppressor Damper
Valve Mount Type
Subplate/Manifold

Product Questions & Answers (3)

Question by: Neil C on Jul 10, 2025, 10:31 AM
What kind of machines would this Vickers valve typically be found on?
Answer by: Customer Support on Jul 11, 2025, 4:57 PM
You'll find these Eaton Vickers valves used in a wide range of applications, including die casting, machine tools, marine/offshore equipment, presses, primary metal processing, paper mills, test equipment, turbine control systems (wind, steam, and water).
Question by: Glen J on Jul 21, 2025, 8:42 PM
trying to match up a valve we’ve got tagged DG17V4-01, 10 design. is the DG17V4012A10 part of that same single-stage directional control family?
Answer by: Customer Support on Jul 23, 2025, 6:51 AM
Within the DG17V4-01 10 Design single-stage directional control valve line, DG17V4012A10 is one of the model variants in that family.
Question by: Ray R on Sep 26, 2025, 4:34 PM
flow rate on this one is 114 LPM, that right? trying to make sure it'll keep up with our press application before we order
Answer by: Customer Support on Sep 28, 2025, 7:16 AM
114 litres per minute is correct for this valve. For press applications, that flow capacity is well within the range this series was built to handle. The DG17V4 line is specifically listed for press use, so you're looking at a good fit on both counts.
